Tektronix A6303
| Attribute | Value |
|---|---|
| Current Range | 100 A RMS |
| Peak Current | 500 A Peak |
| Bandwidth | DC to 50 MHz |
| Sensitivity | 10 mV/A |
| Maximum Conductor Diameter | 32 mm (1.26 in) |
| Output Connector | BNC |
| Required Amplifier | AM503B or TCPA300/TCPA400 Series |
| Operating Temperature | 0°C to +50°C |
| DC Accuracy | ±1% of reading ±10 mA |
| Probe Type | AC/DC Current Probe |
Tektronix A6303 Options:
- A6303 - 174-3247-00 - Cable Assembly: Cable Assy W/CKT BD, A6303 (serial no. discont'd B031152)
- A6303 - 174-3247-01 - Cable Assembly: W/CKT BD, A6303 (serial no. effective B031153)
- A6303XL - 174-3222-00 - Cable Assembly: With Circuit Board, A6303XL
- A6303 - 334-4347-01 - Marker, Ident: Marked A6303
- A6303XL - 334-8622-01 - Marker, Ident: Marked A6303XL
- A6303 - 070-3906-XX - Manual, Tech: Instruction, A6303, A6303XL, DP
| Model | A6303 |
|---|

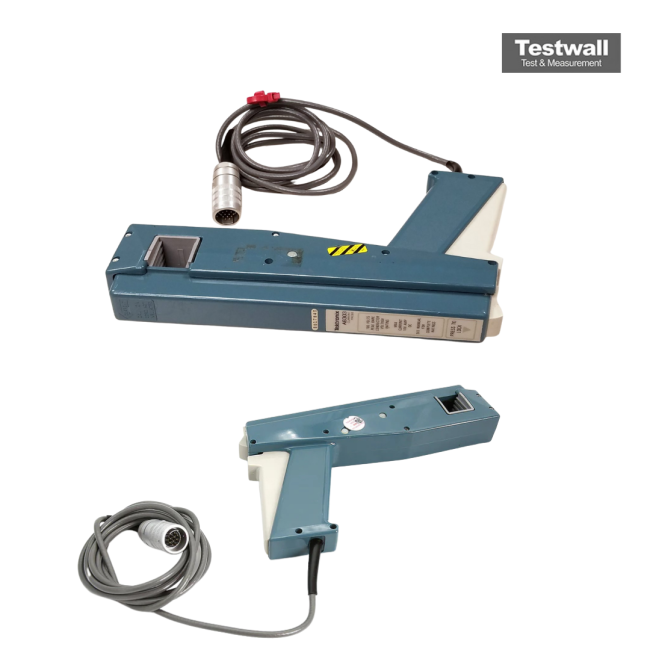

The Tektronix A6303 is a high-performance 15 MHz active current probe designed for precision current measurements. It supports 100 A RMS continuous and 500 A peak input, covering a frequency range from DC to 15 MHz. With a 2-meter cable and the ability to accommodate conductors up to 0.83 inches in diameter, it delivers flexibility and accuracy. Compatible with AM503, AM503A, AM503B, or AM5030 amplifiers, the A6303 requires no input power, ensuring efficient field or bench use.
This probe excels in current measurement systems, providing clear signals for a variety of high-current applications. It includes an instruction manual and carrying case as standard accessories.
Testwall can supply the used Tektronix A6303, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix A6303.
