Tektronix TPP0051
| Attribute | Value |
|---|---|
| Bandwidth | 50 MHz |
| Attenuation Ratio | 10X |
| Input Resistance | 10 MΩ |
| Input Capacitance | 11.9 pF |
| Maximum Input Voltage | 300 V RMS CAT II |
| Rise Time | 7 ns |
| Cable Length | 1.2 m (4 ft) |
| Connector Type | BNC |
| Compatible Oscilloscopes | Tektronix TBS1000, TDS1000/2000 Series |
| Compensation Range | 15 pF to 25 pF |
Tektronix TPP0051 Options:
- TPP0051 - 013-0363-xx - Micro hook tip
- TPP0051 - 013-0366-xx - Universal IC cap
- TPP0051 - 013-0367-xx - BNC-to-probe tip adapter, unterminated
- TPP0051 - 016-2016-xx - PCB-to-probe tip adapter, 10-pack
- TPP0051 - 016-2034-xx - Short ground spring, 2 each
- TPP0051 - 020-3045-xx - Wire, 32 AWG spool
- TPP0051 - 131-8831-xx - Compact probe-tip chassis mount
- TPP0051 - 196-3198-xx - 6 in. clip-on ground lead with 0.025 in. pin receptacle
- TPP0051 - 196-3512-xx - 12 in. alligator ground
- TPP0051 - 206-0569-xx - MicroCKT test tip
| Model | TPP0051 |
|---|

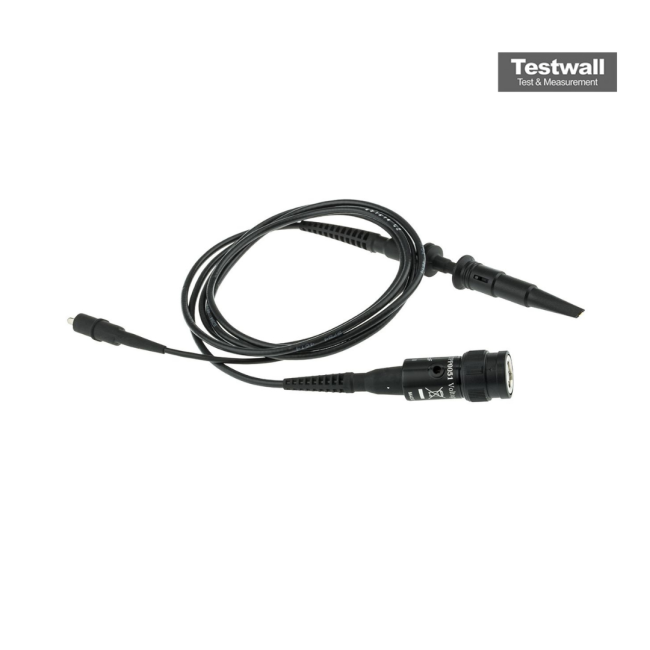

The Tektronix TPP0051 is a high-quality 50MHz passive voltage probe designed for precision testing on BNC oscilloscopes with 1MΩ/20pF inputs. Featuring 10X attenuation, a 1.3m cable, 10MΩ input resistance, and less than 12pF input capacitance, it ensures accurate signal capture with a rise time under 7ns. It supports up to 300Vrms (CAT II) and complies with UL61010-031 and IEC standards.
This probe offers a compensation range of 15pF to 25pF and operates reliably across a wide temperature range from 10°C to 55°C, ideal for general-purpose voltage measurements.
Testwall can supply the used Tektronix TPP0051, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TPP0051.
