Tektronix A6907
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Isolation Voltage | 600 V RMS CAT II |
| Input Impedance | 1 MΩ |
| Input Capacitance | 12 pF |
| Attenuation Ratio | 10X / 100X |
| Dynamic Range | ±600 V (10X), ±6000 V (100X) |
| Rise Time | 3.5 ns |
| Cable Length | 1.2 m (4 ft) |
| Connector Type | BNC |
| Compatible Instruments | Tektronix TDS and DPO Series Oscilloscopes |
| Model | A6907 |
|---|

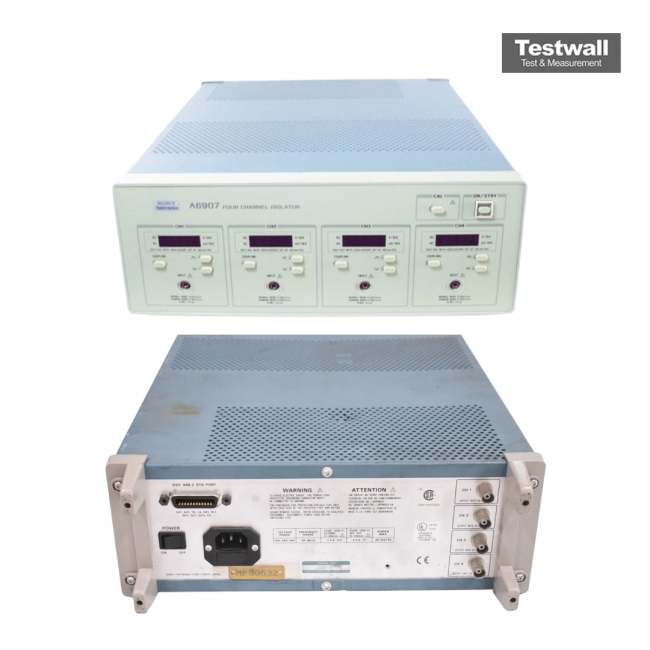

The Tektronix A6907 High Voltage Isolator connects floating signals to an oscilloscope or digitizer using optical couplers and insulated transformers for robust isolation. It supports up to 850 V normal and common mode voltages, offering DC to 60 MHz bandwidth, 20 kV/μs slew rate, and features like self-calibration and external GPIB control.
Ideal for isolated high-voltage measurements, the A6907 ensures precise results with excellent linearity, portability, and low interference. Option 10 adds GPIB support for enhanced control.
Testwall can supply the used Tektronix A6907, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix A6907
