Tektronix

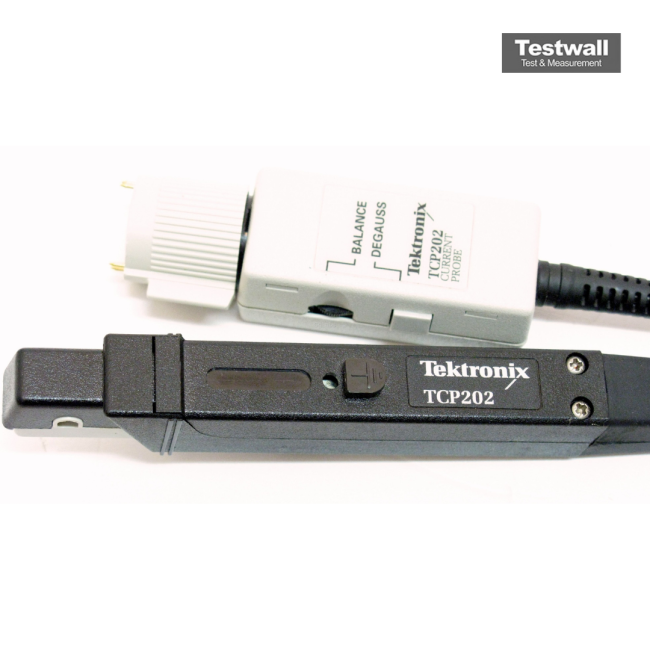

Tektronix TCP202
AC/DC Current Probe
50 MHz Bandwidth
15 A / 150 A Current Range
500 A (≤ 10 µs) Maximum Peak Current
±2% of full scale DC Accuracy
10 mA RMS minimum detectable signal Sensitivity
€1,700.00 excl. VAT + free EU delivery
| Attribute | Value |
|---|---|
| Bandwidth | 50 MHz |
| Current Range | 15 A / 150 A |
| Maximum Peak Current | 500 A (≤ 10 µs) |
| DC Accuracy | ±2% of full scale |
| Sensitivity | 10 mA RMS minimum detectable signal |
| Output Sensitivity | 100 mV/A (15 A range), 10 mV/A (150 A range) |
| Rise Time | 7 ns |
| Maximum Conductor Size | 5 mm diameter |
| Operating Temperature | 0°C to +50°C |
| Compatibility | Tektronix TCPA300 and TCPA400 amplifiers |
Tektronix TCP202 Options:
- TCP202 - 015-0672-50 - Probe Calibrator – Use with TDS510A, TDS520B, TDS520C, TDS520D, TDS540B, TDS540C, TDS540D, TDS580D, TDS654C, TDS680C, TDS684C, TDS694C, TDS724A, TDS724C, TDS724D, TDS754A, TDS754C, TDS754D, TDS784A, TDS784C, TDS784D, TDS794D for improved accuracy
- TCP202 - 1103 - TEKPROBE Power Supply (for scopes without TEKPROBE BNC interfaces)
- TCP202 - ADA400A - Differential Preamplifier
- TCP202 - P5205 - High Voltage Differential Probe
- TCP202 - P5210 - High Voltage Differential Probe
| Model | TCP202 |
|---|
The Tektronix TCP202 DC Coupled Current Probe enables direct DC and AC current measurements when used with a Tektronix TDS oscilloscope, featuring a 50 MHz bandwidth, 15A DC + Peak AC current, and 50A peak pulse current. It connects via TEKPROBE™ BNC interface and offers split-core construction for easy use.
Ideal for general-purpose current measurements in power supply, motor drive design, and electronic device testing, it ensures accuracy and ease of use.
Testwall can supply the used Tektronix TCP202, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TCP202.
