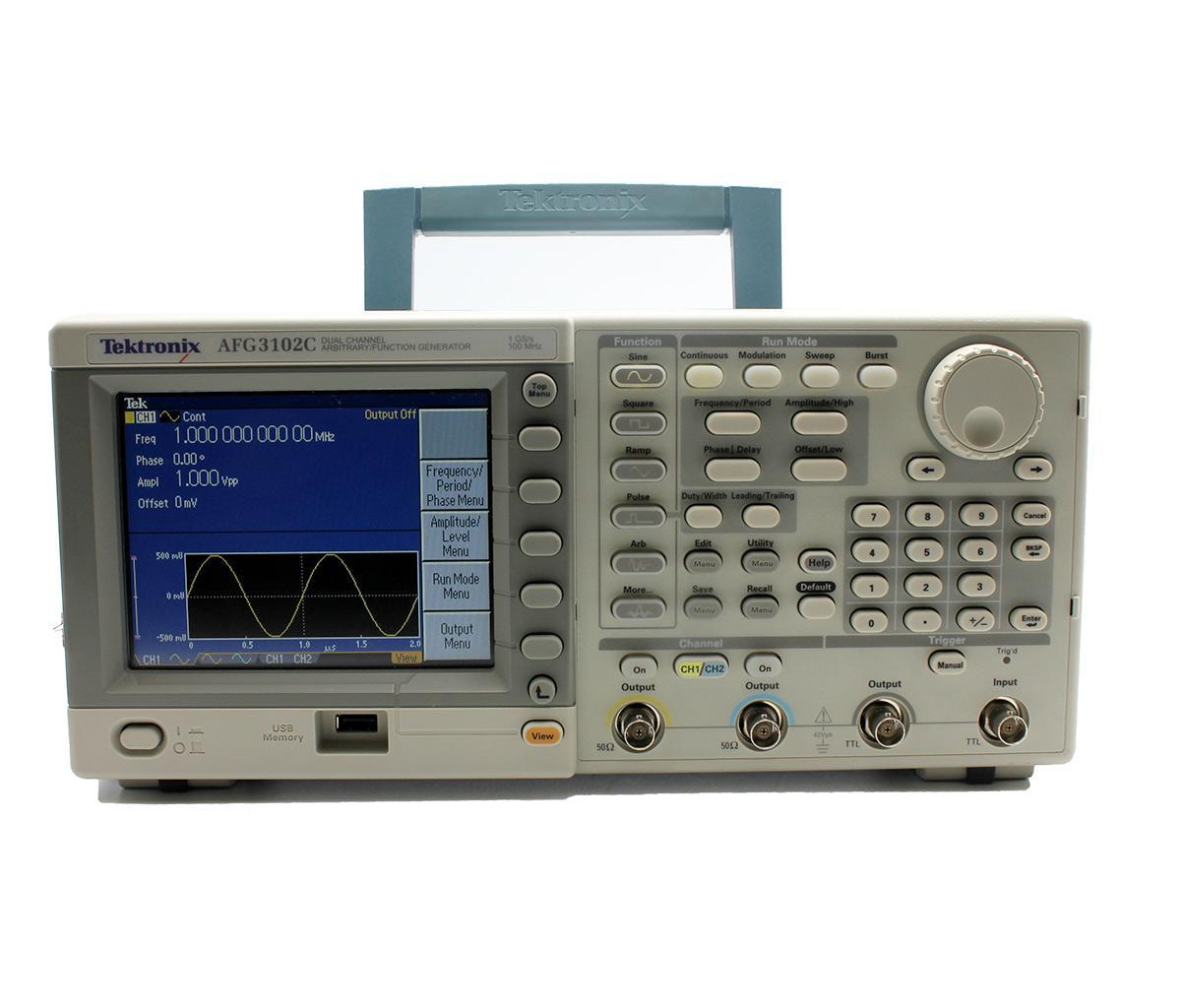

Tektronix AFG3102C
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Maximum Frequency | 100 MHz |
| Waveform Types | Sine, Square, Pulse, Ramp, Triangle, DC, Noise, Sin(x)/x, Gaussian, Lorentz, Exponential Rise/Fall, Haversine, and Arbitrary |
| Arbitrary Waveform Memory | 128K points per channel |
| Sample Rate | 250 MS/s |
| Amplitude Range | 1 mVpp to 10 Vpp into 50Ω (2 mVpp to 20 Vpp into open circuit) |
| Frequency Resolution | 1 µHz |
| Modulation Types | AM, FM, PM, FSK, PWM, Sweep, and Burst |
| Connectivity / Interface | USB, GPIB, and LAN (LXI compliant) |
| Display | 3.5-inch color LCD display |
Tektronix AFG3102C Options:
- AFG3102C - A0 - North America power plug (115 V, 60 Hz)
- AFG3102C - A1 - Universal Euro power plug (220 V, 50 Hz)
- AFG3102C - A2 - United Kingdom power plug (240 V, 50 Hz)
- AFG3102C - A3 - Australia power plug (240 V, 50 Hz)
- AFG3102C - A5 - Switzerland power plug (220 V, 50 Hz)
- AFG3102C - A6 - Japan power plug (100 V, 50/60 Hz)
- AFG3102C - A10 - China power plug (50 Hz)
- AFG3102C - A11 - India power plug (50 Hz)
- AFG3102C - A12 - Brazil power plug (60 Hz)
- AFG3102C - A99 - No power cord
- AFG3102C - L0 - English manual (071-1631-xx)
- AFG3102C - L1 - French manual (071-1632-xx)
- AFG3102C - L2 - Italian manual (071-1669-xx)
- AFG3102C - L3 - German manual (071-1633-xx)
- AFG3102C - L4 - Spanish manual (071-1670-xx)
- AFG3102C - L5 - Japanese manual (071-1634-xx)
- AFG3102C - L6 - Portuguese manual (071-3042-xx)
- AFG3102C - L7 - Simple Chinese manual (071-1635-xx)
- AFG3102C - L8 - Traditional Chinese manual (071-1636-xx)
- AFG3102C - L9 - Korean manual (071-1637-xx)
- AFG3102C - L10 - Russian manual (071-1638-xx)
- AFG3102C - L99 - No manual
- AFG3102C - C3 - Calibration Service 3 Years
- AFG3102C - C5 - Calibration Service 5 Years
- AFG3102C - D1 - Calibration Data Report
- AFG3102C - D3 - Calibration Data Report 3 Years (with Opt. C3)
- AFG3102C - D5 - Calibration Data Report 5 Years (with Opt. C5)
- AFG3102C - R5 - Repair Service 5 Years (including warranty)
- AFG3102C - R5DW - Repair Service Coverage 5 Years (includes product warranty period); 5-year period starts at time of instrument purchase
- AFG3102C - SILV400 - Standard warranty extended to 5 years
| Model | AFG3102C |
|---|
The Tektronix AFG3102C offers 12 standard waveforms and supports arbitrary waveform generation up to 128 K points at high sampling rates. It features pulse waveform edge control, signal addition, and a time base stability of ±1 ppm/year.
It includes a 5.6" color TFT LCD for clear waveform visualization, shortcut keys for fast access, and supports AM, FM, PM, FSK, PWM, sweep, and burst. Dual-channel capability and versatile connectivity enhance its flexibility.

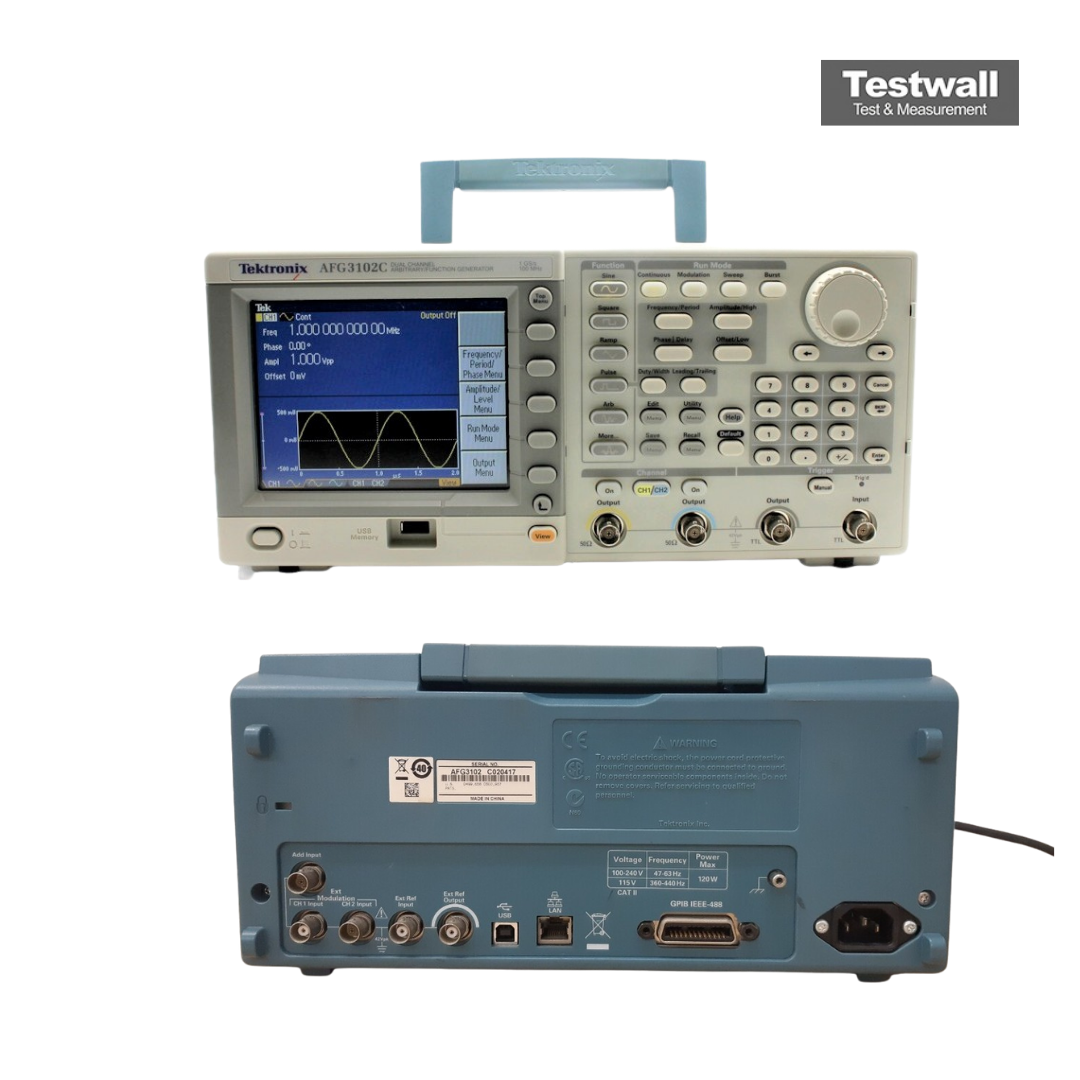

Testwall can supply the used Tektronix AFG3102C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG3102C.
