Tektronix

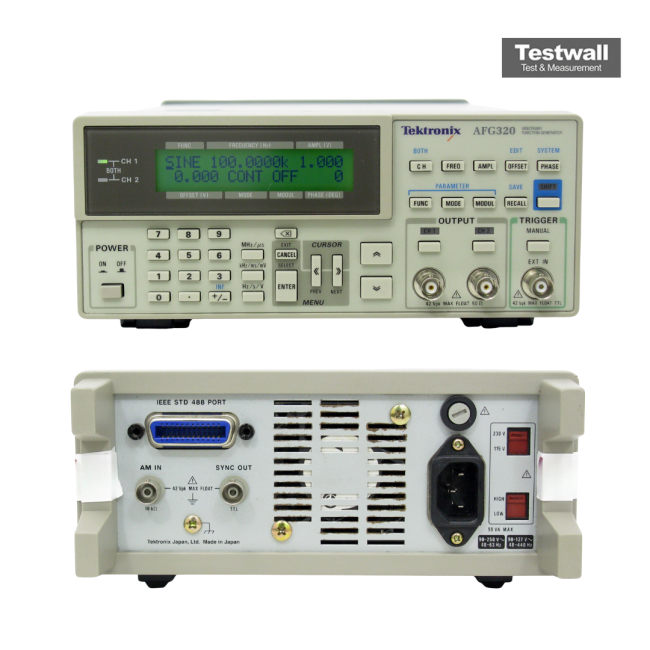

Tektronix AFG320
16MHz Arbitrary Function Generator
0.001 Hz to 16 MHz Frequency Range
2 Independent Channels Number of Channels
Sine, Square, Triangle, Ramp, Pulse, Noise, DC, and Arbitrary Waveform Types
16,000 Points per Channel Arbitrary Waveform Memory Depth
10 mVp-p to 10 Vp-p into 50 Ω Amplitude Range
| Attribute | Value |
|---|---|
| Frequency Range | 0.001 Hz to 16 MHz |
| Number of Channels | 2 Independent Channels |
| Waveform Types | Sine, Square, Triangle, Ramp, Pulse, Noise, DC, and Arbitrary |
| Arbitrary Waveform Memory Depth | 16,000 Points per Channel |
| Amplitude Range | 10 mVp-p to 10 Vp-p into 50 Ω |
| Frequency Resolution | 1 µHz |
| Output Impedance | 50 Ω |
| Modulation Types | AM, FM, FSK, Burst, Sweep |
| Interface/Connectivity | GPIB (IEEE-488.2) |
| Power Requirements | 100–240 VAC, 47–63 Hz |
Tektronix AFG320 Options:
- AFG320 - A0 - North America Power
- AFG320 - A1 - Universal EURO Power
- AFG320 - A2 - United Kingdom Power
- AFG320 - A3 - Australia Power
- AFG320 - A4 - 240 V, North America Power
- AFG320 - A5 - Switzerland Power
- AFG320 - C3 - Calibration Service 3 Years
- AFG320 - D1 - Calibration Data Report
- AFG320 - D3 - Calibration Data Report 3 Years (with Option C3)
| Model | AFG320 |
|---|
The Tektronix AFG320 is an advanced dual-channel 16 MHz generator, offering 14-bit DAC resolution for precise signal fidelity. It supports AM/FM modulation and arbitrary waveform generation, making it ideal for benchtop testing. A user-friendly LCD with menu navigation enhances usability.
Suitable for complex signal simulation, the AFG320 is perfect for development and diagnostic labs requiring flexible waveform synthesis.
Testwall can supply the used Tektronix AFG320, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG320.
