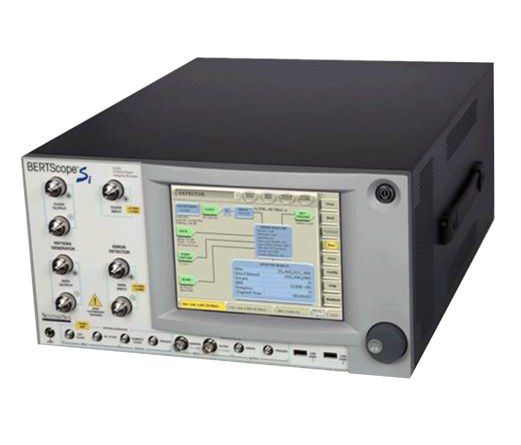

Tektronix BSA85C
| Attribute | Value |
|---|---|
| Data Rate | 0.1 to 8.5 Gb/s (pattern generator and error detector) |
| PG Output Amplitude | 0.25 to 2 V swing, termination -2 to +2 V |
| PG Output Jitter | <10 ps p-p typical (≥1 Gb/s) |
| ED Sensitivity | 100 mVp-p single-ended, 50 mVp-p differential (typical) |
| PRBS Patterns | 2^n-1, n = 7, 11, 15, 20, 23, 31 |
| User Pattern Memory | 128 bits to 128 Mb |
| BER Contours | 10^-6 to 10^-16 |
| Data/Clock Connectors | APC-3.5 Planar Crown |
| Display | 640 x 480 VGA TFT touch screen |
| Dimensions / Weight | 220 x 394 x 520 mm (H x W x D), 25 kg |
Tektronix BSA85C Options:
- STR - Stressed signal generation (includes ECC, MAP, PL, XSSC, JTOL, SF)
- F2 - F/2 jitter generation at 8G/10.3125G (requires STR)
- XSSC - Extended spread spectrum clocking (included in STR)
- PCISTR - PCIe extended stress generation
- J-MAP - Jitter decomposition software
- ECC - Error correction coding emulation software (included in STR)
- JTOL - Jitter tolerance templates software (included in STR)
- LDA - Live data analysis software
- MAP - Error mapping analysis software (included in STR)
- PL - Physical layer test suite software (included in STR)
- PVU - PatternVu equalisation processing software
- SF - Symbol filtering software (included in STR)
- SLD - Stressed live data software
The BSA85C is an 8.5 Gb/s member of the Tektronix BERTScope BSA C-series, combining a pattern generator and error detector with eye diagram and BER contour analysis in one instrument. It covers 0.1 to 8.5 Gb/s and is used to locate problem bits and pattern sequences in serial data links.
Option STR adds stressed signal generation for receiver jitter tolerance testing and bundles several analysis packages; further software options cover jitter decomposition, PatternVu equalisation and PCIe stress. It is typically paired with the CR125A clock recovery instrument and DPP125 pre-emphasis processor for serial standards compliance work.
Testwall can supply the used Tektronix BSA85C, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Tektronix BSA85C.
