Tektronix
Tektronix CT4
Current Probe
1 mA to 2 A peak Current Range
DC to 1 GHz Frequency Range
350 ps Rise Time
5 mV/mA Output Voltage
5 Ω Transfer Impedance
| Attribute | Value |
|---|---|
| Current Range | 1 mA to 2 A peak |
| Frequency Range | DC to 1 GHz |
| Rise Time | 350 ps |
| Output Voltage | 5 mV/mA |
| Transfer Impedance | 5 Ω |
| Maximum Peak Current | 2 A |
| Aperture Inner Diameter | 0.1 in (2.54 mm) |
| Output Connector | SMA |
| Operating Temperature | 0°C to +50°C |
| Dimensions (H x W x D) | 0.44 in x 0.44 in x 0.56 in (11.2 mm x 11.2 mm x 14.2 mm) |
| Model | CT4 |
|---|

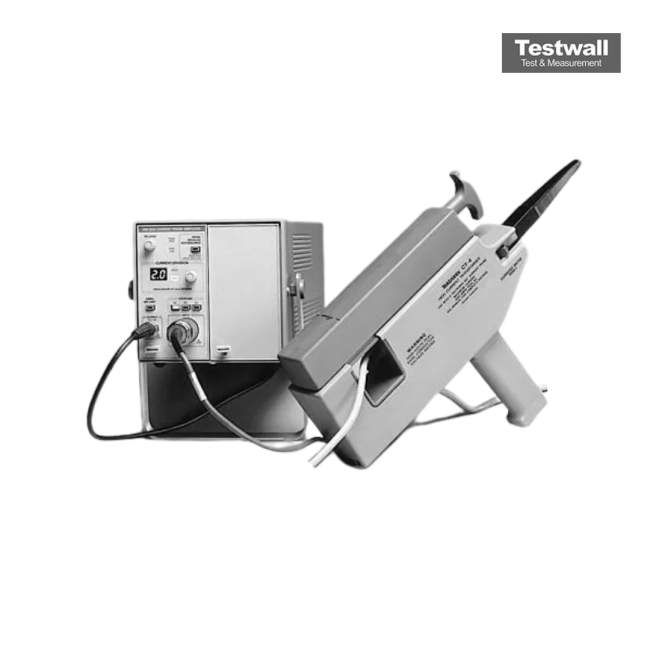

The Tektronix CT4 is a high-performance AC current probe designed to measure pulsed currents up to 20,000 A and continuous currents up to 2,000 Ap-p, supporting conductors up to 1.5 inches in diameter with a split-core design.
It enables safe and accurate in-circuit current testing up to 3,000 VP on bare conductors, and is compatible with Tektronix models A6312, A6302, A6302XL, P6021, or TCP202.
Testwall can supply the used Tektronix CT4, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix CT4
