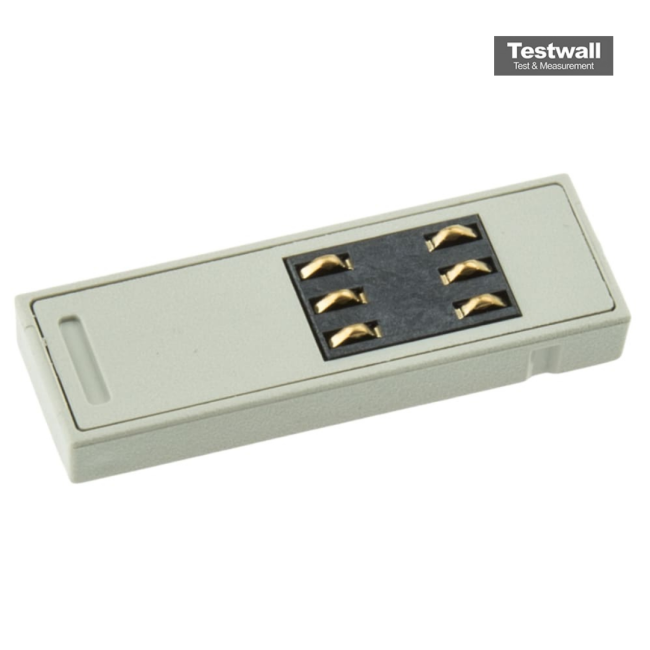

Tektronix DPO2COMP
| Attribute | Value |
|---|---|
| Compatibility | Tektronix DPO2000 and MSO2000 Series Oscilloscopes |
| Application Type | Serial Bus Triggering and Analysis Module |
| Supported Protocols | RS-232, RS-422, RS-485, UART |
| RS-232/UART Baud Rates | 300 bps to 115.2 Kbps |
| Triggering Capability | Trigger on Start Bit, Specific Data, Parity Error, or End of Packet |
| Decoding | Bus waveform display with decoded packet data in hexadecimal or ASCII format |
| Search Capability | Automated search across acquired data for specific serial bus events |
| Installation Method | Software license key (no additional hardware required) |
| Word Length Support | 7 or 8 data bits per frame |
| Parity Support | Odd, Even, or No Parity |
Tektronix DPO2COMP Options:
- DPO2COMP - Opt. A0 - North America power.
- DPO2COMP - Opt. A1 - Universal EURO power.
- DPO2COMP - Opt. A2 - United Kingdom power.
- DPO2COMP - Opt. A3 - Australia power.
- DPO2COMP - Opt. A5 - Switzerland power.
- DPO2COMP - Opt. A6 - Japan power.
- DPO2COMP - Opt. A10 - China power.
- DPO2COMP - Opt. A11 - India power.
- DPO2COMP - Opt. A99 - No power cord or AC adapter.
- DPO2COMP - Opt. L0 - English manual.
- DPO2COMP - Opt. L1 - French manual.
- DPO2COMP - Opt. L2 - Italian manual.
- DPO2COMP - Opt. L3 - German manual.
- DPO2COMP - Opt. L4 - Spanish manual.
- DPO2COMP - Opt. L5 - Japanese manual.
- DPO2COMP - Opt. L6 - Portuguese manual.
- DPO2COMP - Opt. L7 - Simplified Chinese manual.
- DPO2COMP - Opt. L8 - Standard Chinese manual.
- DPO2COMP - Opt. L9 - Korean manual.
- DPO2COMP - Opt. L10 - Russian manual.
- DPO2COMP - Opt. L99 - No manual.
- DPO2COMP - Opt. C3 - Calibration Service 3 years.
- DPO2COMP - Opt. C5 - Calibration Service 5 years.
- DPO2COMP - Opt. CA1 - Provides a single calibration event, or coverage for the designated calibration interval, whichever comes first.
- DPO2COMP - Opt. D1 - Calibration Data Report.
- DPO2COMP - Opt. D3 - Calibration Data Report 3 years (with Opt. C3).
- DPO2COMP - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5).
- DPO2COMP - Opt. R5 - Repair Service 5 years (including warranty).
| Model | DPO2COMP |
|---|
The Tektronix DPO2COMP module enhances DPO2000 Series oscilloscopes with advanced serial bus trigger and decode options, supporting I2C, SPI, CAN, LIN, and RS-232/422/485/UART protocols. With up to 200 MHz bandwidth, 1 GS/s sampling, and 1 Mpts memory on all channels, it ensures accurate signal capture. The 7" TFT-LCD and FilterVu™ low-pass filter simplify detailed waveform analysis.
Designed for engineers requiring clarity in embedded system debugging, this compact tool offers efficient data navigation through Wave Inspector® and seamless USB connectivity for data management and PC control.
Testwall can supply the used Tektronix DPO2COMP, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO2COMP.
