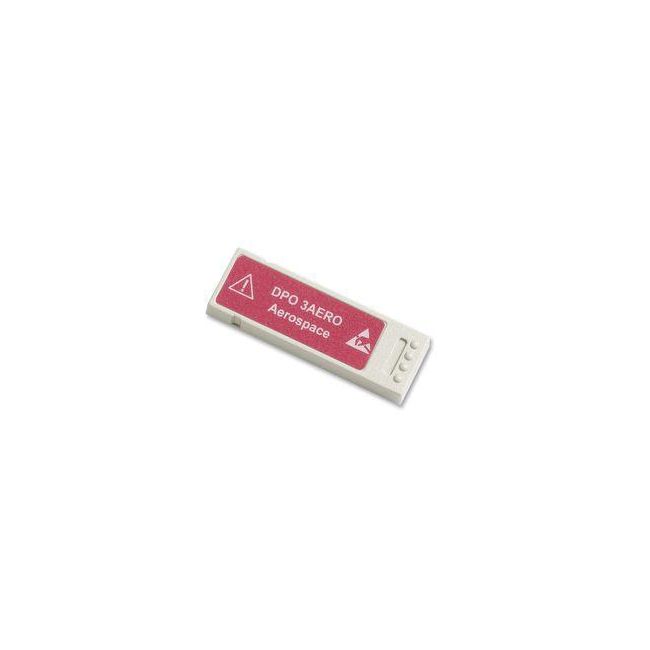

Tektronix DPO3AERO
Aerospace Serial Triggering and Analysis Module
DPO3000 / MSO3000 Series Compatible Oscilloscope Series
Aerospace Serial Bus Triggering and Analysis Module Application Type
MIL-STD-1553, ARINC 429 Supported Bus Standards
Trigger on specific bus conditions, words, and errors for MIL-STD-1553 and ARINC 429 Triggering Capability
Symbolic bus decoding with color-coded overlays displayed directly on waveform Decode Capability
| Attribute | Value |
|---|---|
| Compatible Oscilloscope Series | DPO3000 / MSO3000 Series |
| Application Type | Aerospace Serial Bus Triggering and Analysis Module |
| Supported Bus Standards | MIL-STD-1553, ARINC 429 |
| Triggering Capability | Trigger on specific bus conditions, words, and errors for MIL-STD-1553 and ARINC 429 |
| Decode Capability | Symbolic bus decoding with color-coded overlays displayed directly on waveform |
| Search Functionality | Automated search across acquired data for user-defined bus events and conditions |
| Installation Method | Software license key activated directly on the oscilloscope (no additional hardware required) |
| License Type | Permanent (non-expiring) application module license |
| Data Logging | Bus activity can be logged and exported for further analysis |
| Compliance | Supports analysis conforming to MIL-STD-1553B and ARINC 429 protocol standards |
Tektronix DPO3AERO Options:
- DPO3AERO - DPO3AERO - Aerospace Serial Triggering and Analysis Module. Enables triggering on packet-level information on MIL-STD-1553 buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time-stamp information.
- DPO3AERO - DPO3AUDIO - Audio Serial Triggering and Analysis Module. Enables triggering on packet-level information on I2S, Left Justified, Right Justified, TDM, and custom audio buses.
- DPO3AERO - DPO3AUTO - Automotive Serial Triggering and Analysis Module. Enables triggering on packet-level information on CAN bus and LIN bus.
- DPO3AERO - DPO3COMP - Computer Serial Triggering and Analysis Module. Enables triggering on packet-level information on RS-232/422/485/UART buses.
- DPO3AERO - DPO3EMBD - Embedded Serial Triggering and Analysis Module. Enables triggering on packet-level information on I2C and SPI buses.
- DPO3AERO - DPO3FLEX - FlexRay Serial Triggering and Analysis Module. Enables triggering on packet-level information on FlexRay buses.
- DPO3AERO - DPO3PWR - Power Analysis Module. Enables quick and accurate analysis of power quality, switching loss, harmonics, safe operating area (SOA), modulation, ripple, and slew rate (dI/dt, dV/dt).
- DPO3AERO - DPO3VID - HDTV and Custom (nonstandard) Video Triggering Module.
- DPO3AERO - DPO3BW1T32 - Bandwidth upgrade from 100 MHz to 300 MHz for an MSO/DPO3012.
- DPO3AERO - DPO3BW1T34 - Bandwidth upgrade from 100 MHz to 300 MHz for an MSO/DPO3014.
- DPO3AERO - DPO3BW1T52 - Bandwidth upgrade from 100 MHz to 500 MHz for an MSO/DPO3012.
- DPO3AERO - DPO3BW1T54 - Bandwidth upgrade from 100 MHz to 500 MHz for an MSO/DPO3014.
- DPO3AERO - DPO3BW3T52 - Bandwidth upgrade from 300 MHz to 500 MHz for an MSO/DPO3012 or an MSO/DPO3032.
- DPO3AERO - DPO3BW3T54 - Bandwidth upgrade from 300 MHz to 500 MHz for an MSO/DPO3014 or an MSO/DPO3034.
- DPO3AERO - Opt. A0 - North America power plug (115 V, 60 Hz)
- DPO3AERO - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- DPO3AERO - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- DPO3AERO - Opt. A3 - Australia power plug (240 V, 50 Hz)
- DPO3AERO - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- DPO3AERO - Opt. A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- DPO3AERO - Opt. A10 - China power plug (50 Hz)
- DPO3AERO - Opt. A11 - India power plug (50 Hz)
- DPO3AERO - Opt. A12 - Brazil power plug (60 Hz)
- DPO3AERO - Opt. A99 - No power cord
- DPO3AERO - Opt. L0 - English manual
- DPO3AERO - Opt. L1 - French manual
- DPO3AERO - Opt. L2 - Italian manual
- DPO3AERO - Opt. L3 - German manual
- DPO3AERO - Opt. L4 - Spanish manual
- DPO3AERO - Opt. L5 - Japanese manual
- DPO3AERO - Opt. L6 - Portuguese manual
- DPO3AERO - Opt. L7 - Simplified Chinese manual
- DPO3AERO - Opt. L8 - Traditional Chinese manual
- DPO3AERO - Opt. L9 - Korean manual
- DPO3AERO - Opt. L10 - Russian manual
- DPO3AERO - Opt. L99 - No manual
- DPO3AERO - Opt. CA1 - Single Calibration or Functional Verification
- DPO3AERO - Opt. D1 - Calibration Data Report
- DPO3AERO - Opt. R5 - Repair Service 5 Years (including warranty)
- DPO3AERO - Opt. SILV400 - Standard warranty extended to 5 years
- DPO3AERO - TAP1500 - 1.5 GHz TekVPI active voltage probe
- DPO3AERO - TAP1500X2 - Bundle of two 1.5 GHz active probes, single ended with TekVPI interface
- DPO3AERO - TCP0030 - 120 MHz TekVPI 30 Ampere AC/DC current probe
- DPO3AERO - TCP0150 - 20 MHz TekVPI 150 Ampere AC/DC current probe
- DPO3AERO - TCPA300/400 - Current measurement systems amplifier
- DPO3AERO - TDP0500 - 500 MHz TekVPI differential voltage probe with ±42 V differential input voltage
- DPO3AERO - TDP1000 - 1 GHz TekVPI differential voltage probe with ±42 V differential input voltage
- DPO3AERO - TMDP0200 - ±750 V, 200 MHz high-voltage differential probe
- DPO3AERO - THDP0200 - ±1.5 kV, 200 MHz high-voltage differential probe
- DPO3AERO - THDP0100 - ±6 kV, 100 MHz high-voltage differential probe
- DPO3AERO - P5100A - 2.5 kV, 100X high-voltage passive probe
- DPO3AERO - P5200 - 1.3 kV, 25 MHz high-voltage differential probe
- DPO3AERO - P5205 - 1.3 kV, 100 MHz high-voltage differential probe
- DPO3AERO - TEK-USB-488 - GPIB to USB Adapter
- DPO3AERO - SIGEXPTE - NI LabVIEW SignalExpress Tektronix Edition (full Professional Version)
| Model | DPO3AERO |
|---|
The Tektronix DPO3AERO is a specialized serial-triggering and analysis module for DPO/MSO3000 oscilloscopes, focused on MIL-STD-1553 protocol decoding. It supports live bus decoding, event timestamping, and deep search within MIL-STD-1553 A/B bus communications using analog or math inputs without extra hardware.
Ideal for aerospace diagnostics, it provides detailed triggering, filtering, and exportable event logs, enhancing precision and troubleshooting of critical avionics communication.
Testwall can supply the used Tektronix DPO3AERO, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO3AERO.
