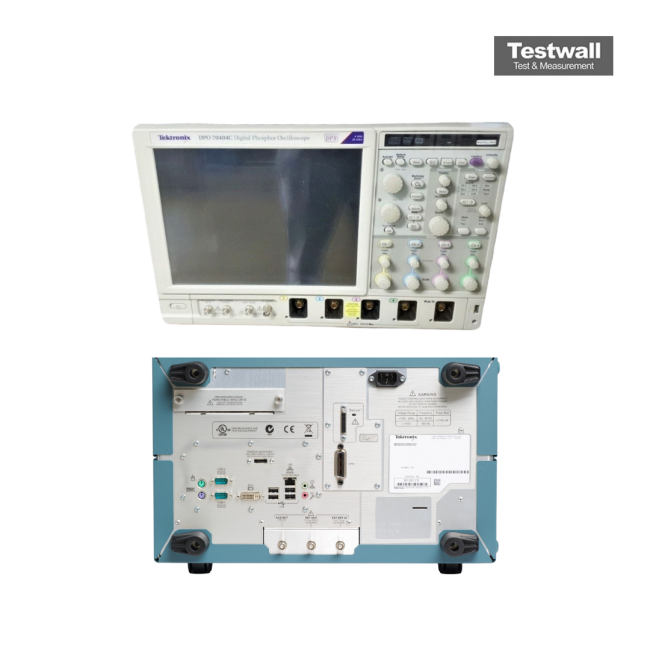

Tektronix DPO70404C
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Number of Channels | 4 |
| Sample Rate | 25 GS/s on 2 channels, 12.5 GS/s on 4 channels |
| Record Length | Up to 250 Mpoints |
| Vertical Resolution | 8-bit (up to 11-bit with Hi Res mode) |
| Rise Time | 116 ps (10% to 90%) |
| Input Impedance | 50 Ω or 1 MΩ |
| Waveform Capture Rate | Up to 300,000 waveforms/second |
| Display | 12.1-inch TFT color LCD display |
| Connectivity | USB, LAN (LXI), DVI, GPIB (optional) |
Tektronix DPO70404C Options:
Options available for the Tektronix DPO/DSA/MSO70000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DPO70404C - 2XL - Extended record length
- DPO70404C - 5XL - Extended record length
- DPO70404C - 10XL - Extended record length
- DPO70404C - 20XL - Extended record length
- DPO70404C - 50XL - Extended record length
- DPO70404C - DJA - DPOJET advanced jitter and eye diagram analysis (standard on DSA models)
- DPO70404C - DJAN - DPOJET jitter and noise analysis
- DPO70404C - SDLA64 - Serial data link analysis (equalization, de-embedding)
- DPO70404C - DDRA - DDR memory bus analysis
- DPO70404C - ST6G - 6.25 Gb/s serial pattern trigger
- DPO70404C - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DPO70404C - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DPO70404C - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DPO70404C - SR-USB - USB 2.0 serial triggering and analysis
- DPO70404C - SR-PCIE - PCI Express serial analysis
- DPO70404C - SR-810B - 8b/10b serial analysis
- DPO70404C - MTH - Mask testing
- DPO70404C - LT - Limit testing
- DPO70404C - VET - Visual trigger
- DPO70404C - ASM - Advanced search and mark
The Tektronix DPO70404C is a 4-channel digital phosphor oscilloscope with 4 GHz bandwidth and 25 GS/s real-time sample rate on all channels. It provides advanced triggering, protocol decoding, and 125M points memory per channel for precise high-speed analysis. A 12.1″ touchscreen and Wave Inspector® enhance usability.
Ideal for serial data, RF, and power analysis, it supports segmented capture, FFT, jitter and eye diagram measurements, and optional compliance testing for USB, DDR, and more.
Testwall can supply the used Tektronix DPO70404C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO70404C.
