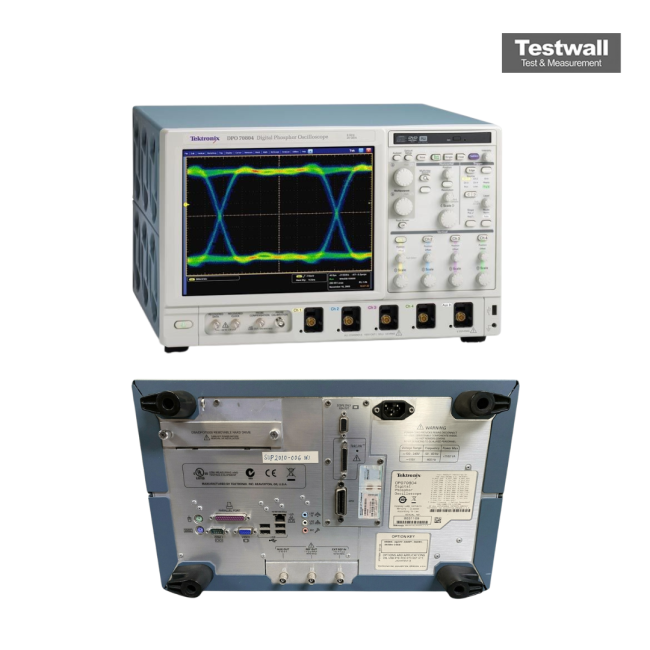

Tektronix DPO70804
| Attribute | Value |
|---|---|
| Bandwidth | 8 GHz |
| Number of Channels | 4 |
| Sample Rate | 25 GS/s on all channels simultaneously |
| Record Length | Up to 250 Mpoints |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Rise Time | 48.6 ps (typical) |
| Input Impedance | 50 Ω and 1 MΩ |
| Display | 12.1-inch TFT color LCD display |
| Operating System | Windows 7 Professional (32-bit) |
| Connectivity | USB, LAN (LXI compliant), GPIB (optional) |
Tektronix DPO70804 Options:
Options available for the Tektronix DPO/DSA/MSO70000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DPO70804 - 2XL - Extended record length
- DPO70804 - 5XL - Extended record length
- DPO70804 - 10XL - Extended record length
- DPO70804 - 20XL - Extended record length
- DPO70804 - 50XL - Extended record length
- DPO70804 - DJA - DPOJET advanced jitter and eye diagram analysis (standard on DSA models)
- DPO70804 - DJAN - DPOJET jitter and noise analysis
- DPO70804 - SDLA64 - Serial data link analysis (equalization, de-embedding)
- DPO70804 - DDRA - DDR memory bus analysis
- DPO70804 - ST6G - 6.25 Gb/s serial pattern trigger
- DPO70804 - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DPO70804 - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DPO70804 - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DPO70804 - SR-USB - USB 2.0 serial triggering and analysis
- DPO70804 - SR-PCIE - PCI Express serial analysis
- DPO70804 - SR-810B - 8b/10b serial analysis
- DPO70804 - MTH - Mask testing
- DPO70804 - LT - Limit testing
- DPO70804 - VET - Visual trigger
- DPO70804 - ASM - Advanced search and mark
The Tektronix DPO70804 offers 8 GHz analog bandwidth and 20 GS/s sampling rate on all four channels, making it ideal for capturing high-speed transient signals in real time. It features deep memory up to 250M points, color-graded high-resolution display, and supports serial bus compliance testing.
Perfect for DDR, USB 3.0, and SERDES analysis, the DPO70804 enables comprehensive debugging of complex digital systems with high fidelity and speed.
Testwall can supply the used Tektronix DPO70804, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO70804.
