Tektronix DPO714AX 7-BW-20000
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz (option 7-BW-20000) |
| Number of Analog Channels | 4 TekConnect inputs |
| Sample Rate | 125 GS/s on all 4 channels |
| Record Length | 500 M points standard (up to 2 G optional) |
| Vertical Resolution | 10-bit ADC |
| Display | 15.6-inch HD (1920 x 1080) capacitive touchscreen |
| Probe Compatibility | TekConnect probes, P7700 and P7600 Series TriMode probes |
| Series | Tektronix 7 Series DPO |

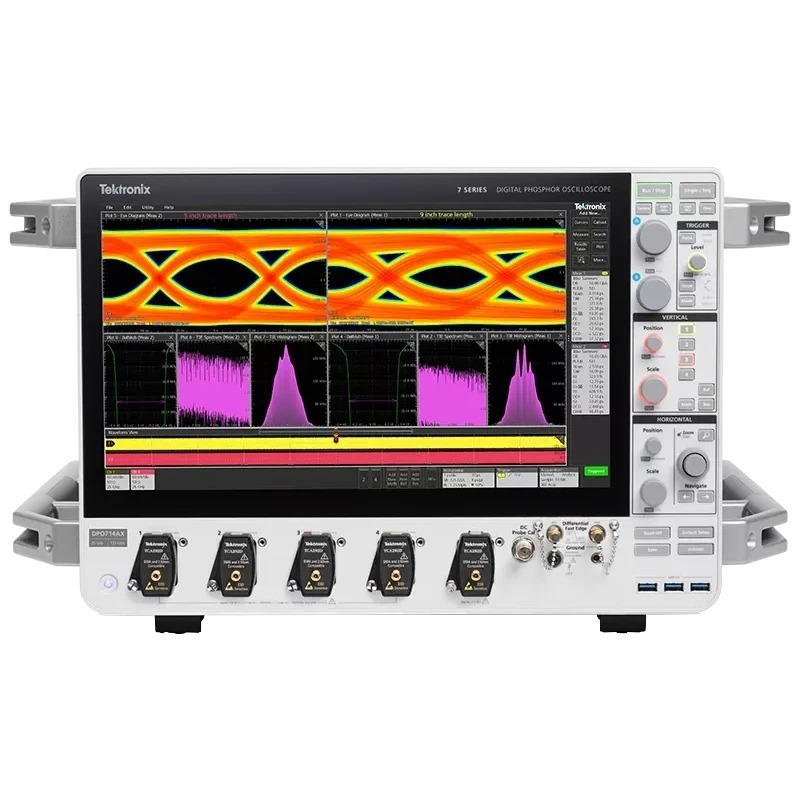

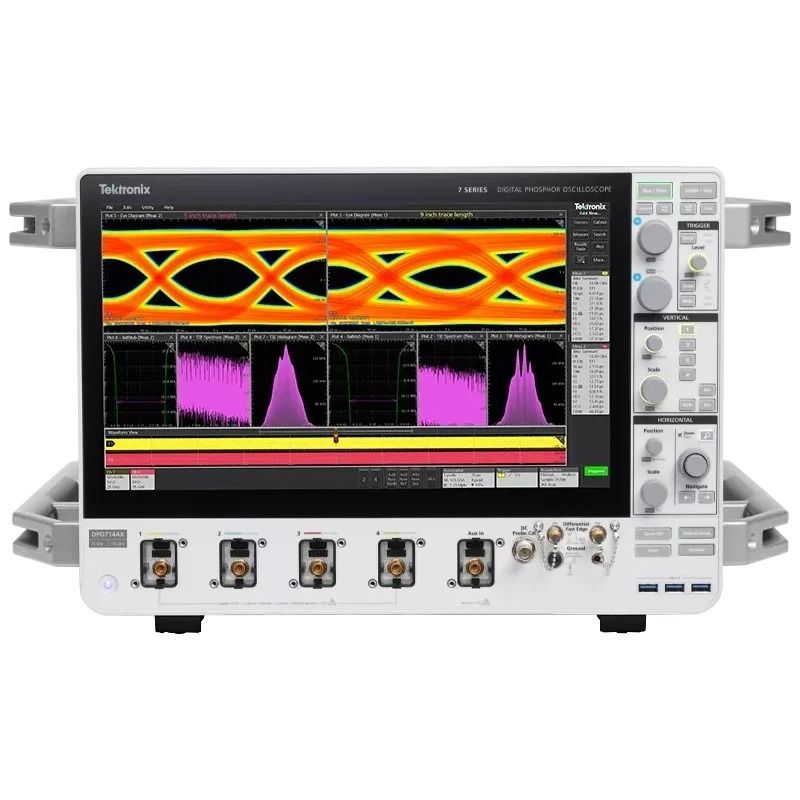

The Tektronix DPO714AX 7-BW-20000 is the 20 GHz bandwidth configuration of the DPO714AX, the 4-channel 7 Series DPO. It samples at 125 GS/s on all four channels with a 10-bit ADC, very low noise and a low-jitter timebase, and offers 500 M points record length as standard. The 7 Series DPO is Tektronix's high-performance real-time oscilloscope for high-speed serial, RF and signal-integrity measurements, with TekConnect inputs and a 15.6-inch HD touchscreen.
Bandwidth on the 7 Series DPO is set by option, so the DPO714AX can be ordered at 8 GHz, 10 GHz, 13 GHz, 16 GHz, 20 GHz, 25 GHz. This listing is for the 20 GHz unit (option 7-BW-20000). If you need a different bandwidth, see the DPO714AX overview page for all configurations.
Testwall can supply the used Tektronix DPO714AX 7-BW-20000, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Tektronix DPO714AX.
