Tektronix

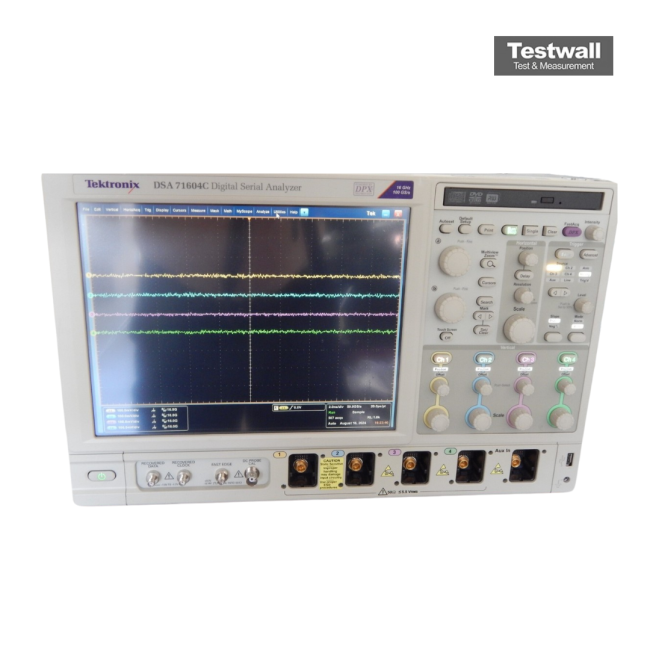

Tektronix DSA71604C
4 Ch 16 GHz Digital Signal Analyzer
16 GHz Bandwidth
50 GS/s on 1 or 2 channels; 25 GS/s on all 4 channels Sample Rate
4 Number of Channels
8 bits (11 bits with Hi-Res mode) Vertical Resolution
Up to 250 million points Record Length
| Attribute | Value |
|---|---|
| Bandwidth | 16 GHz |
| Sample Rate | 50 GS/s on 1 or 2 channels; 25 GS/s on all 4 channels |
| Number of Channels | 4 |
| Vertical Resolution | 8 bits (11 bits with Hi-Res mode) |
| Record Length | Up to 250 million points |
| Rise Time | 21.9 ps (typical) |
| Input Impedance | 50 Ω |
| Display | 12.1 inch (307 mm) TFT color display, 1024 x 768 resolution |
| Operating System | Windows 7 Professional (64-bit) |
| Connectivity | USB 2.0, LAN (1000Base-T), GPIB (optional), DVI-I video output |
Tektronix DSA71604C Options:
- DSA71604C - 2XL - Extended record length – 31.25 MS/Ch (Standard on DSA70000)
- DSA71604C - 5XL - Extended record length – 62.5 MS/Ch
- DSA71604C - 10XL - Extended record length – 125 MS/Ch
- DSA71604C - 20XL - Extended record length – 250 MS/Ch
- DSA71604C - SSD - Additional Removable Disk – Solid State Drive
- DSA71604C - LT - Waveform Limit Testing
- DSA71604C - MTH - Mask testing for Serial Standards. Includes hardware clock recovery for up to 3.125 Gb/s (Standard on DSA70000)
- DSA71604C - ST6G - Protocol Triggering and Decoding for 8b/10b-encoded Serial Signals up to 6.25 Gb/s. Includes hardware clock recovery and pattern lock triggering (Standard on DSA70000)
- DSA71604C - D-PHY - MIPI D-PHY Essentials – Characterization and Analysis Solution
- DSA71604C - DDRA - DDR Memory Bus Analysis
- DSA71604C - DJA - DPOJET Jitter and Eye Diagram Analysis (Standard on DSA70000)
- DSA71604C - DSPT - DisplayPort Compliance Test Solution
- DSA71604C - DVI - DVI Compliance Test Solution
- DSA71604C - ERRDT - Frame and Bit Error Rate Detector for High-speed Serial Standards
- DSA71604C - ET3 - Ethernet Compliance Test Software
- DSA71604C - HT3 - HDMI Compliance Test Software
- DSA71604C - HT3DS - HDMI Direct Synthesis for HDMI 1.4
- DSA71604C - M-PHY - MIPI M-PHY Essentials – Characterization and Analysis Solution
- DSA71604C - PCE3 - PCI Express Gen3 Essentials
- DSA71604C - PWR - Power Measurement and Analysis Software
- DSA71604C - QPI - Intel Quick Path Interconnect Test Automation Software
- DSA71604C - SFP-TX - SFP+ Compliance and Debug Solution
- DSA71604C - SLA - Serial Data Link Analysis Advanced (with Equalization)
- DSA71604C - SLE - Serial Data Link Analysis Essentials (no Equalization)
- DSA71604C - SR-COMP - Computer Serial Triggering and Analysis (RS-232/422/485/UART)
- DSA71604C - SR-CUST - Custom Serial Analysis Kit for Developers
- DSA71604C - SR-DPHY - MIPI D-PHY (DSI / CSI2) Serial Analysis
- DSA71604C - SR-EMBD - Embedded Serial Triggering and Analysis (I2C, SPI)
- DSA71604C - SR-USB - USB Serial Triggering and Analysis
- DSA71604C - SVE - SignalVu Essentials – Vector Signal Analysis Software
- DSA71604C - SVM - General Purpose Modulation Analysis
- DSA71604C - SVO - Flexible OFDM Analysis
- DSA71604C - SVP - Advanced Signal Analysis (including pulse measurements)
- DSA71604C - SVT - Frequency and Phase Settling Time Measurements
- DSA71604C - USB - USB 2.0 Compliance Test Software
- DSA71604C - USB3 - USB 3.0 Compliance and Analysis Software
- DSA71604C - VET - Visual Trigger
- DSA71604C - TEKEXP - TekExpress Automation Framework
- DSA71604C - D-PHYTX - D-PHY Automated Solution
- DSA71604C - DIIVA - DiiVA Automation Solution
- DSA71604C - DP-SINK - DisplayPort Sink Compliance Automation Software
- DSA71604C - HEAC - HEAC Automated Solution
- DSA71604C - SAS-RSG - Stand-alone SAS Receiver Measurements
- DSA71604C - SAS-RXTX - Stand-alone SAS Channel Measurements
- DSA71604C - SAS-TSG - Stand-alone SAS Transmitter Measurements
- DSA71604C - SAS-DHB - Stand-alone SAS Bundled Solution
- DSA71604C - SATA-TSG - SATA PHY/TSG/OOB Transmitter Tests for TekExpress
- DSA71604C - SATA-RSG - SATA RSG/RMT Receiver Tests for TekExpress
- DSA71604C - SATA-RXTX - SATA Rx/Tx Channel Tests for TekExpress
- DSA71604C - SATA-DHB - SATA TekExpress SW Bundle (TSG, RSG, RXTX for Hosts or Devices)
- DSA71604C - SATA-SI - SATA SI Cable Tests for TekExpress
- DSA71604C - USB-RMT - TekExpress Automated USB 3.0 Receiver Solution
- DSA71604C - USB-TX - TekExpress Automated USB 3.0 Solution
- DSA71604C - XGbT - 10GBASE-T Automated Solution
- DSA71604C - L0 - English manual
- DSA71604C - L1 - French manual
- DSA71604C - L3 - German manual
- DSA71604C - L5 - Japanese manual
- DSA71604C - L7 - Simple Chinese manual
- DSA71604C - L8 - Standard Chinese manual
- DSA71604C - L9 - Korean manual
- DSA71604C - L10 - Russian manual
- DSA71604C - L99 - No manual
- DSA71604C - A0 - US plug, 115 V, 60 Hz
- DSA71604C - A1 - Euro plug, 220 V, 50 Hz
- DSA71604C - A2 - UK plug, 240 V, 50 Hz
- DSA71604C - A3 - Australian plug, 240 V, 50 Hz
- DSA71604C - A5 - Swiss plug, 220 V, 50 Hz
- DSA71604C - A6 - Japanese plug, 100 V, 110/120 V, 60 Hz
- DSA71604C - A10 - China plug, 50 Hz
- DSA71604C - A11 - India plug, 50 Hz
- DSA71604C - A12 - Brazilian plug, 60 Hz
- DSA71604C - A99 - No power cord
- DSA71604C - C3 - Calibration Service 3 Years
- DSA71604C - C5 - Calibration Service 5 Years
- DSA71604C - D1 - Calibration Data Report
- DSA71604C - D3 - Calibration Data Report 3 Years (with Opt. C3)
- DSA71604C - D5 - Calibration Data Report 5 Years (with Opt. C5)
- DSA71604C - G3 - Complete Care 3 Years (includes loaner, scheduled calibration and more)
- DSA71604C - G5 - Complete Care 5 Years (includes loaner, scheduled calibration and more)
- DSA71604C - R3 - Repair Service 3 Years
- DSA71604C - R5 - Repair Service 5 Years
- DSA71604C - IF - Upgrade Installation Service
| Model | DSA71604C |
|---|
The Tektronix DSA71604C is a 16 GHz bandwidth, 4‑channel Digital Serial Analyzer with a remarkable 100 GS/s sample rate and 31 Mpts standard memory. It offers superior signal integrity and exceptional signal‑to‑noise ratio, ensuring the most accurate waveform representation. Features include Pinpoint® and Visual Triggering, real‑time serial triggering at 6.25 Gb/s, Search & Mark capabilities, and extensive serial protocol support including I2C, SPI, USB 2.0, and MIPI® D‑PHY.
Designed for high‑speed serial standards, wideband RF, and memory analysis, the DSA71604C delivers unmatched accuracy and user efficiency through automation and tailored application support.
Testwall can supply the used Tektronix DSA71604C, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DSA71604C.
