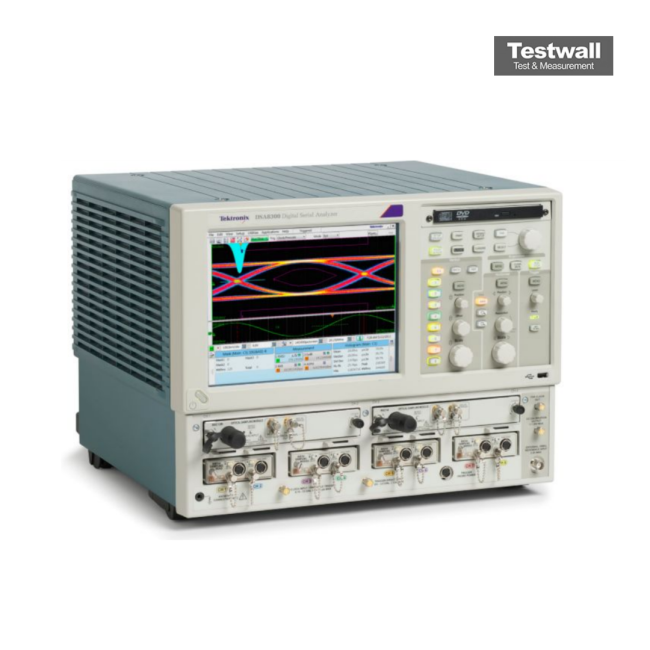

Tektronix DSA8300
| Attribute | Value |
|---|---|
| Bandwidth | Up to 70 GHz (with appropriate sampling modules) |
| Rise Time | As fast as 4.9 ps (with 70 GHz modules) |
| Timebase Range | 10 ps/div to 1000 s/div |
| Vertical Resolution | 12-bit ADC resolution |
| Maximum Sample Rate | Up to 1 Ms/s equivalent-time sampling rate |
| Number of Channels | Up to 4 sampling module slots (supports multiple channels per module) |
| Trigger Bandwidth | 12.5 GHz internal trigger bandwidth |
| Display | 10.4-inch color TFT LCD display |
| Operating System | Windows 7 Embedded |
| Connectivity | USB, LAN (Ethernet), GPIB (optional); supports VISA and MATLAB connectivity |
Tektronix DSA8300 Options:
- DSA8300 - ADVTRIG - Add advanced triggers with pattern sync
- DSA8300 - ICMX - IConnect® and MeasureXtractor Signal Integrity and Failure Analysis Software
- DSA8300 - ICON - IConnect® Signal Integrity and Failure Analysis Software
- DSA8300 - JARB - Add 80SJARB (included with Option JNB or JNB01)
- DSA8300 - JNB - Add 80SJNB Essentials
- DSA8300 - JNB01 - Add 80SJNB Advanced
- DSA8300 - SPAR - IConnect® S-parameters Software
- DSA8300 - CA1 - Single Calibration or Functional Verification
- DSA8300 - C3 - Calibration Service 3 Years
- DSA8300 - C5 - Calibration Service 5 Years
- DSA8300 - D1 - Calibration Data Report
- DSA8300 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- DSA8300 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- DSA8300 - R3 - Repair Service 3 Years (including warranty)
- DSA8300 - R5 - Repair Service 5 Years (including warranty)
- DSA8300 - IF - Upgrade Installation Service
- DSA8300 - A0 - North America power
- DSA8300 - A1 - Universal Euro power
- DSA8300 - A2 - United Kingdom power
- DSA8300 - A3 - Australia power
- DSA8300 - A4 - 240 V, North America power
- DSA8300 - A5 - Switzerland power
- DSA8300 - A6 - Japan power
- DSA8300 - A10 - China power
- DSA8300 - A11 - India power
- DSA8300 - A12 - Brazil power
- DSA8300 - A99 - No power cord or AC adapter
- DSA8300 - L0 - English manual
- DSA8300 - L7 - Simple Chinese manual
- DSA8300 - L8 - Standard Chinese manual
- DSA8300 - L10 - Russian manual
| Model | DSA8300 |
|---|
The Tektronix DSA8300 Digital Serial Analyzer offers DC to 80 GHz analog bandwidth, ultra-low system jitter (<100 fs typical), and up to 300 kS/s sample rate. With support for up to 8 analog channels and a record length ranging from 50 to 16,000 points, it ensures precise measurements and advanced testing capabilities. Compatible with both electrical and optical modules, it supports compliance testing up to 100 Gb/s.
Ideal for high-speed data analysis, it provides superior acquisition throughput and enables up to 6 simultaneous channels with precise timing. Channel deskew is independently calibrated.
Testwall can supply the used Tektronix DSA8300, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DSA8300.
