Tektronix MDO3104
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Analog Channels | 4 |
| Sample Rate | 5 GS/s |
| Record Length | 10 M points |
| Vertical Resolution | 8 bits |
| RF Channel Frequency Range | 9 kHz to 3 GHz |
| Display Type | 9-inch (228 mm) TFT color display, WVGA (800 x 480) |
| Waveform Capture Rate | 280,000 waveforms per second |
| Input Impedance | 1 MΩ or 50 Ω (with appropriate probe or adapter) |
| Integrated Instruments | Oscilloscope, Spectrum Analyzer, Logic Analyzer, Protocol Analyzer, Arbitrary/Function Generator, Digital Voltmeter |
Tektronix MDO3104 Options:
Options available for the Tektronix MDO3000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- MDO3104 - MDO3AFG - Built-in 50 MHz arbitrary/function generator
- MDO3104 - MDO3MSO - Mixed signal option, 16 digital channels
- MDO3104 - MDO3SA - Extend spectrum analyzer input to 9 kHz - 3 GHz
- MDO3104 - MDO3SEC - Enhanced security
- MDO3104 - MDO3AERO - Aerospace serial triggering and analysis (MIL-STD-1553, ARINC 429)
- MDO3104 - MDO3AUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MDO3104 - MDO3AUTO - Automotive serial triggering and analysis (CAN, LIN)
- MDO3104 - MDO3COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- MDO3104 - MDO3EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MDO3104 - MDO3FLEX - FlexRay serial triggering and analysis
- MDO3104 - MDO3USB - USB 2.0 serial triggering and analysis
- MDO3104 - MDO3LMT - Limit and mask testing
- MDO3104 - MDO3PWR - Power measurement and analysis

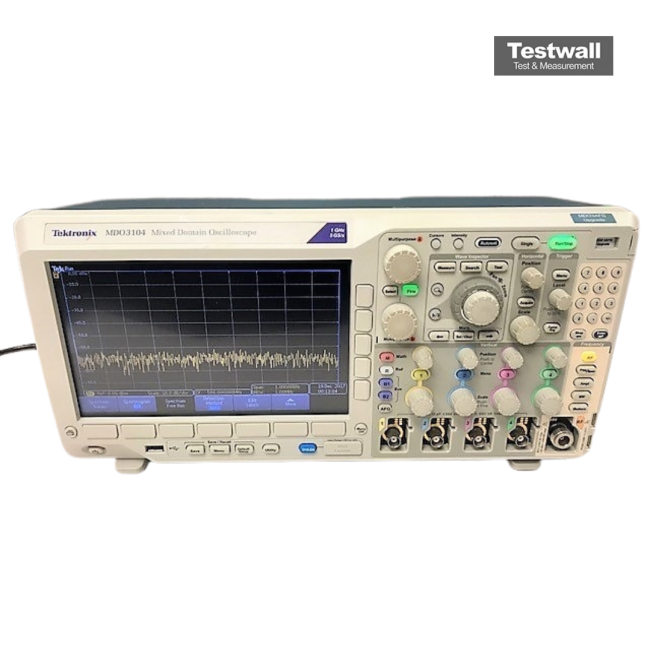

The Tektronix MDO3104 is a 4-channel, 1GHz bandwidth oscilloscope offering a 5 GS/s sample rate and 10 M record length. It includes a built-in 1GHz spectrum analyzer, upgradeable to 3GHz, and supports 16 digital channels with optional MSO. Its 6-in-1 integration includes a logic analyzer, arbitrary function generator, protocol analyzer, and digital voltmeter/counter.
Ideal for modern embedded system design, the MDO3104 supports over 280,000 wfm/s capture rate, extensive serial protocol support, and 13 waveform types for generation with 50 MHz bandwidth.
Testwall can supply the used Tektronix MDO3104, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO3104.
