Yokogawa

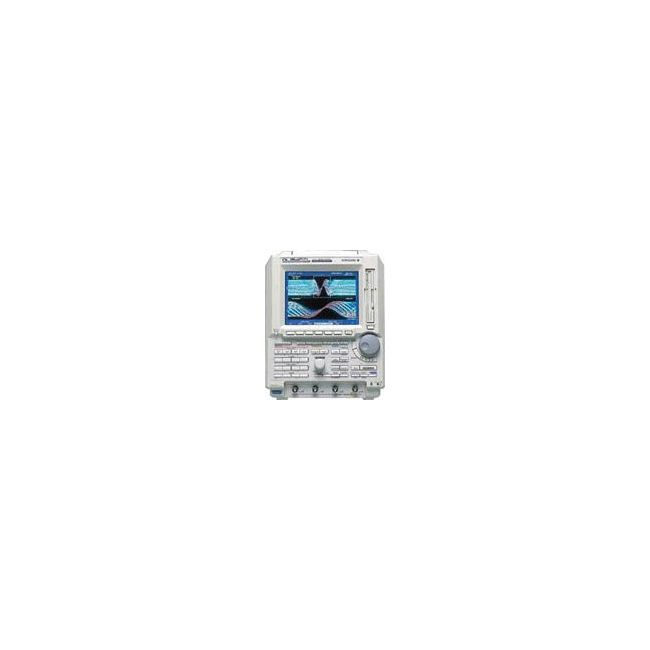

Yokogowa DL1620
2 Channel 200MHz 200MS/s Digital Storage Oscilloscope
2 Channels Number of Channels
200 MHz Bandwidth
200 MS/s (Single Channel), 100 MS/s (Dual Channel) Sample Rate
Up to 1 MW (1,000,000 words) per channel Record Length
8-bit resolution Vertical Resolution
| Attribute | Value |
|---|---|
| Number of Channels | 2 Channels |
| Bandwidth | 200 MHz |
| Sample Rate | 200 MS/s (Single Channel), 100 MS/s (Dual Channel) |
| Record Length | Up to 1 MW (1,000,000 words) per channel |
| Vertical Resolution | 8-bit resolution |
| Vertical Sensitivity | 2 mV/div to 10 V/div |
| Time Base Range | 2 ns/div to 50 s/div |
| Input Impedance | 1 MΩ / 50 Ω selectable |
| Display | 6.5-inch color TFT LCD display |
| Interface / Connectivity | GP-IB, RS-232C, Printer Interface, Floppy Disk Drive |
| Model | DL1620 |
|---|
Digital oscilloscope 6.4-in TFT coulour, 2 channels 200MHz, 200Ms/s, memory 8MWords, AC/12VDC or optional battery power supply, RS232, USB+GPIB or USB+Ethernet
