Tektronix MDO3COMP
Computer Serial Triggering & Analysis Module
MDO3000 Series Oscilloscopes Compatible Series
Serial Triggering and Analysis Module (MDO3COMP includes MDO3AUTO, MDO3EMBD, MDO3COMP protocols) Included Modules
RS-232, RS-422, RS-485, UART, I2C, SPI, CAN, LIN, FlexRay Supported Serial Protocols
RS-232, RS-422, RS-485, UART decoding and triggering Computer Serial Bus Support
I2C and SPI decoding and triggering Embedded Serial Bus Support
| Attribute | Value |
|---|---|
| Compatible Series | MDO3000 Series Oscilloscopes |
| Included Modules | Serial Triggering and Analysis Module (MDO3COMP includes MDO3AUTO, MDO3EMBD, MDO3COMP protocols) |
| Supported Serial Protocols | RS-232, RS-422, RS-485, UART, I2C, SPI, CAN, LIN, FlexRay |
| Computer Serial Bus Support | RS-232, RS-422, RS-485, UART decoding and triggering |
| Embedded Serial Bus Support | I2C and SPI decoding and triggering |
| Automotive Serial Bus Support | CAN, LIN, and FlexRay decoding and triggering |
| Upgrade Type | Software License Upgrade Key (no hardware installation required) |
| Activation Method | License key entered directly into the MDO3000 Series oscilloscope |
| Bus Decode Display | Color-coded bus waveform overlay with decode table and event search capability |
| Warranty | 1 Year |
Tektronix MDO3COMP Options:
- MDO3COMP - Opt. A0 - North America power plug (115 V, 60 Hz)
- MDO3COMP - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- MDO3COMP - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- MDO3COMP - Opt. A3 - Australia power plug (240 V, 50 Hz)
- MDO3COMP - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- MDO3COMP - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- MDO3COMP - Opt. A10 - China power plug (50 Hz)
- MDO3COMP - Opt. A11 - India power plug (50 Hz)
- MDO3COMP - Opt. A12 - Brazil power plug (60 Hz)
- MDO3COMP - Opt. A99 - No power cord
- MDO3COMP - Opt. L0 - English front panel label
- MDO3COMP - Opt. L1 - French front panel overlay
- MDO3COMP - Opt. L2 - Italian front panel overlay
- MDO3COMP - Opt. L3 - German front panel overlay
- MDO3COMP - Opt. L4 - Spanish front panel overlay
- MDO3COMP - Opt. L5 - Japanese front panel overlay
- MDO3COMP - Opt. L6 - Portuguese front panel overlay
- MDO3COMP - Opt. L7 - Simplified Chinese front panel overlay
- MDO3COMP - Opt. L8 - Traditional Chinese front panel overlay
- MDO3COMP - Opt. L9 - Korean front panel overlay
- MDO3COMP - Opt. L10 - Russian front panel overlay
- MDO3COMP - Opt. C3 - Calibration Service 3 Years
- MDO3COMP - Opt. C5 - Calibration Service 5 Years
- MDO3COMP - Opt. D1 - Calibration Data Report
- MDO3COMP - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- MDO3COMP - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- MDO3COMP - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- MDO3COMP - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- MDO3COMP - Opt. R5 - Repair Service 5 Years (including warranty)
| Model | MDO3COMP |
|---|

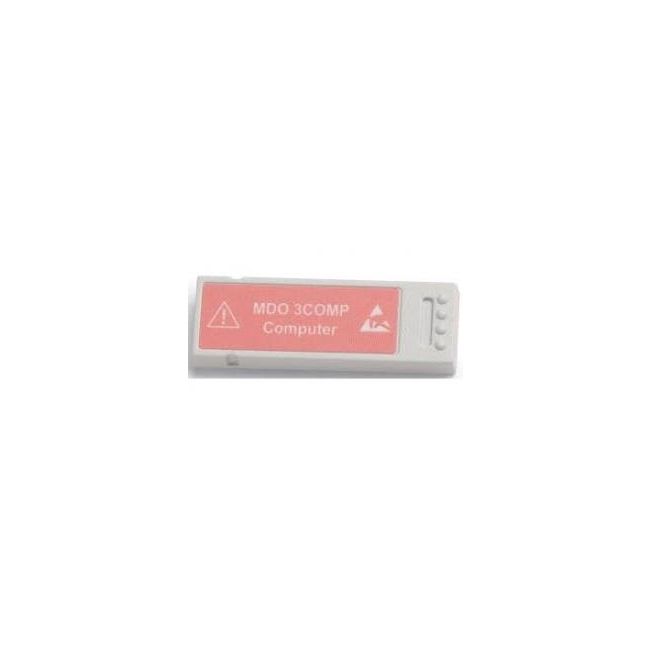

The Tektronix MDO3COMP is a used Computer Serial Triggering & Analysis module for MDO3000-series oscilloscopes. It supports RS-232, RS-422, RS-485, and UART, enabling advanced packet-level triggering and real-time protocol decoding with timestamped event tables.
Ideal for embedded system debugging, it allows smart search across long captures and supports data export in CSV format. It integrates seamlessly with other serial bus tools like I²C, SPI, and CAN.
Testwall can supply the used Tektronix MDO3COMP, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO3COMP.
