Tektronix TCP0030
| Attribute | Value |
|---|---|
| Current Measurement Range | 30 A RMS / 50 A Peak |
| Bandwidth | 120 MHz |
| DC Accuracy | ±2% of full scale |
| Sensitivity | 10 mA RMS minimum detectable signal |
| Output Scale Factor | 100 mV/A |
| Maximum Conductor Size | 8 mm diameter |
| Rise Time | ≤2.9 ns |
| Power Supply | Powered via TEKPROBE II or TekVPI interface |
| Operating Temperature | 0°C to +50°C |
| Compatible Oscilloscopes | Tektronix oscilloscopes with TEKPROBE II or TekVPI interface |
Tektronix TCP0030 Options:
- TCP0030 - L5 - Japanese instruction manual
- TCP0030 - L7 - Simplified Chinese instruction manual
- TCP0030 - C3 - Calibration Service 3 Years
- TCP0030 - C5 - Calibration Service 5 Years
- TCP0030 - D1 - Calibration Data Report
- TCP0030 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- TCP0030 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- TCP0030 - R3 - Repair Service 3 Years
- TCP0030 - R5 - Repair Service 5 Years
- TCP0030 - SILV600 - Standard Warranty Extended to 5 Years
| Model | TCP0030 |
|---|

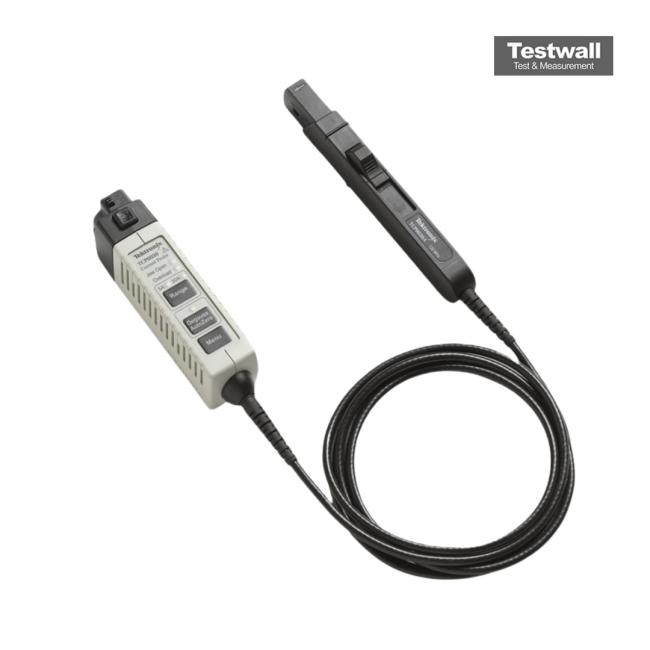

The Tektronix TCP0030 Current Probe enables precision AC/DC current measurements from 1 mA with excellent low-noise performance and DC gain error under 1%. It connects directly to oscilloscopes with TekVPI™, supports auto-scaling, embedded probe data, remote control, and user-friendly degauss and AutoZero functions.
Perfect for high-performance diagnostics, it offers split-core construction for easy circuit access, programmable features via scope interface, and low drift operation for demanding applications.
Testwall can supply the used Tektronix TCP0030, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TCP0030.
