Tektronix A605
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Compatible Oscilloscopes | Tektronix TDS 600, TDS 700, and TDS 500 series oscilloscopes |
| Number of Channels | 4 |
| Input Impedance | 50 Ω |
| Maximum Input Voltage | ±5 V (DC + peak AC) |
| Propagation Delay | Less than 2.5 ns |
| Rise Time | Less than 350 ps |
| Operating Temperature Range | 0°C to +50°C |
| Connector Type | SMA |
| Power Requirements | Powered through oscilloscope interface |
| Model | A605 |
|---|

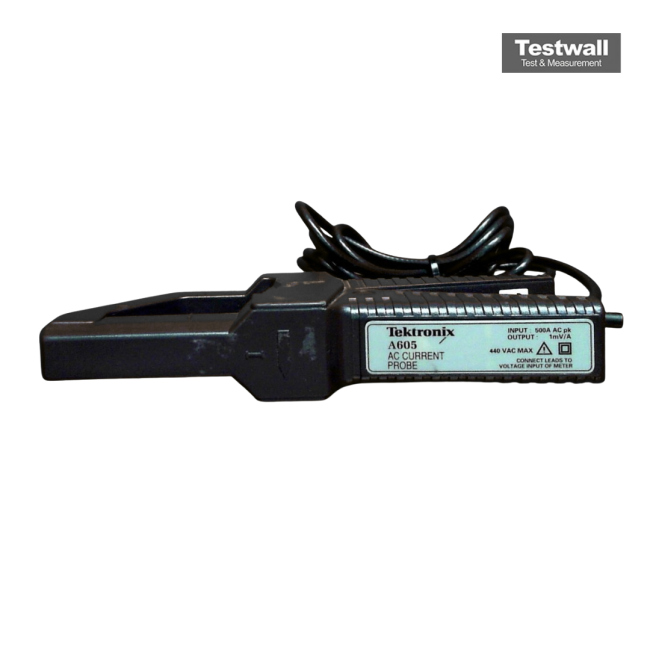

The Tektronix A605 500A AC Current Probe operates across a frequency range of 48Hz to 1kHz, delivering an output of 1mV per Amp. It measures RMS AC currents starting from 4A and peak currents up to 500A, with a maximum conductor diameter of 30mm. Its busbar-style clamp-on design ensures precise current measurement with DMMs, TekMeters, and oscilloscopes.
Ideal for high-current diagnostics, the A605 provides accurate readings for both DC and AC signals, enhancing testing capabilities in demanding applications.
Testwall can supply the used Tektronix A605, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix A605.
