Tektronix TDS3TRG
| Attribute | Value |
|---|---|
| Compatible Series | TDS3000 Series Oscilloscopes |
| Module Type | Advanced Trigger Application Module |
| Trigger Types | Pattern, State, Pulse Width, Runt, Slew Rate, Setup/Hold |
| Pattern Trigger | Triggers on logical combinations of input channels (AND, OR, NAND, NOR) |
| State Trigger | Triggers on a specified logic state clocked by one of the input channels |
| Pulse Width Trigger | Triggers on pulses narrower or wider than a specified width (up to 10 seconds) |
| Runt Trigger | Triggers on pulses that cross one threshold but fail to cross a second threshold |
| Slew Rate Trigger | Triggers on edges that transition too fast or too slow between two threshold levels |
| Setup/Hold Trigger | Triggers on setup and hold time violations between clock and data signals |
| Form Factor | Plug-in application module for TDS3000 series front panel module slot |
| Model | TDS3TRG |
|---|

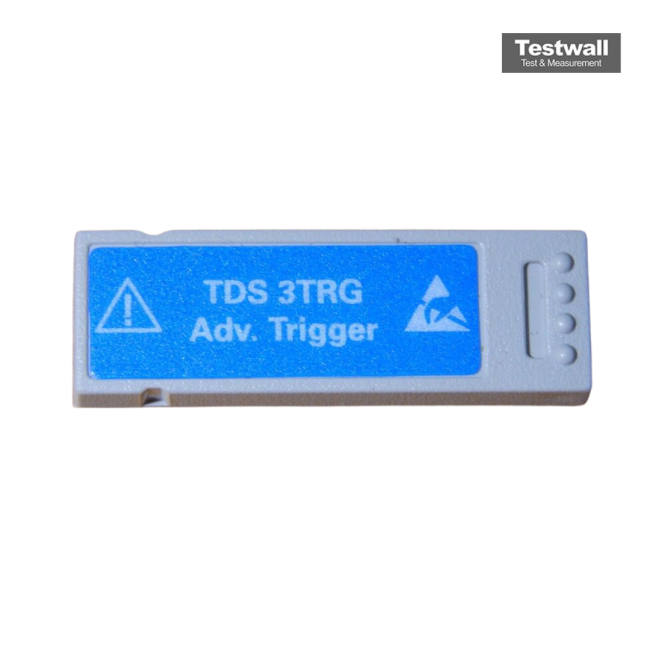

The Tektronix TDS3TRG is a trigger expansion module designed for TDS3000-series oscilloscopes, delivering advanced signal detection capabilities. It integrates logic, pattern, and state triggering, while enabling detailed pulse analysis through pulse-width, runt, and slew-rate triggers. The module enhances the oscilloscope interface with specialized triggering options.
This module is ideal for engineers needing precise triggering capabilities for complex signal diagnostics, expanding the TDS3000's scope functionality.
Testwall can supply the used Tektronix TDS3TRG, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS3TRG.
