Tektronix MDO3LMT
| Attribute | Value |
|---|---|
| License Type | Upgrade License |
| Compatible Series | MDO3000 Series Mixed Domain Oscilloscopes |
| Mask Testing | Enables mask limit testing functionality |
| Pass/Fail Testing | Automated pass/fail mask testing with waveform comparison |
| Mask Creation | User-defined and autoset mask creation from waveforms |
| Violation Detection | Detects signal violations against user-defined mask boundaries |
| Output Actions | Stop on violation, save waveform, print, or trigger auxiliary output on failure |
| License Delivery | Software option key delivered electronically |
| Installation | Installed directly on the MDO3000 Series oscilloscope via option key entry |
| Compatibility | Requires MDO3000 Series oscilloscope with current firmware |
Tektronix MDO3LMT Options:
- MDO3LMT - Opt. A0 - North America power plug (115 V, 60 Hz)
- MDO3LMT - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- MDO3LMT - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- MDO3LMT - Opt. A3 - Australia power plug (240 V, 50 Hz)
- MDO3LMT - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- MDO3LMT - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- MDO3LMT - Opt. A10 - China power plug (50 Hz)
- MDO3LMT - Opt. A11 - India power plug (50 Hz)
- MDO3LMT - Opt. A12 - Brazil power plug (60 Hz)
- MDO3LMT - Opt. A99 - No power cord
- MDO3LMT - Opt. L0 - English front panel label
- MDO3LMT - Opt. L1 - French front panel overlay
- MDO3LMT - Opt. L2 - Italian front panel overlay
- MDO3LMT - Opt. L3 - German front panel overlay
- MDO3LMT - Opt. L4 - Spanish front panel overlay
- MDO3LMT - Opt. L5 - Japanese front panel overlay
- MDO3LMT - Opt. L6 - Portuguese front panel overlay
- MDO3LMT - Opt. L7 - Simplified Chinese front panel overlay
- MDO3LMT - Opt. L8 - Traditional Chinese front panel overlay
- MDO3LMT - Opt. L9 - Korean front panel overlay
- MDO3LMT - Opt. L10 - Russian front panel overlay
- MDO3LMT - Opt. C3 - Calibration Service 3 Years
- MDO3LMT - Opt. C5 - Calibration Service 5 Years
- MDO3LMT - Opt. D1 - Calibration Data Report
- MDO3LMT - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- MDO3LMT - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- MDO3LMT - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- MDO3LMT - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- MDO3LMT - Opt. R5 - Repair Service 5 Years (including warranty)
| Model | MDO3LMT |
|---|

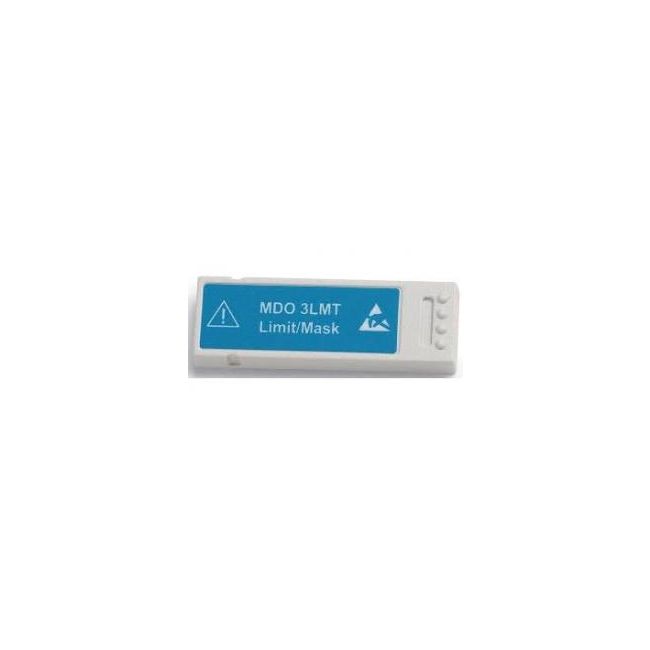

The Tektronix MDO3LMT enables rigorous limit and mask testing with over 40 standard masks (ITU‑T, ANSI T1.102, USB 2.0 HS) and supports user-defined custom masks. Vertical tolerances can be adjusted in 0.001 div increments, and mask hits are visually highlighted for clarity.
Ideal for manufacturing lines, it provides real-time statistics, flexible test durations up to 48 hours or infinite, and automated actions upon failure or completion including waveform saves and SRQ signals.
Testwall can supply the used Tektronix MDO3LMT, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO3LMT.
