Tektronix MDO3USB
USB Serial Triggering & Analysis Module
MDO3000 Series Mixed Domain Oscilloscopes Compatible Series
USB 2.0 Serial Triggering and Analysis Module Application Module Type
Low Speed (1.5 Mb/s), Full Speed (12 Mb/s), High Speed (480 Mb/s) Supported USB Speeds
Trigger on USB packet, data, handshake, and error conditions Triggering Capabilities
Automatic decode and display of USB 2.0 bus activity in human-readable format Decode Capabilities
| Attribute | Value |
|---|---|
| Compatible Series | MDO3000 Series Mixed Domain Oscilloscopes |
| Application Module Type | USB 2.0 Serial Triggering and Analysis Module |
| Supported USB Speeds | Low Speed (1.5 Mb/s), Full Speed (12 Mb/s), High Speed (480 Mb/s) |
| Triggering Capabilities | Trigger on USB packet, data, handshake, and error conditions |
| Decode Capabilities | Automatic decode and display of USB 2.0 bus activity in human-readable format |
| Search Capabilities | Automated search across acquired waveform for user-defined USB packet events |
| Bus Activity Display | Color-coded packet decode overlaid directly on the waveform |
| Installation Method | Application module installed directly into the oscilloscope module slot; no PC required |
| License Type | Hardware-based license embedded in the application module |
| Compliance Standards | USB 2.0 specification compliant triggering and decode |
| Model | MDO3USB |
|---|

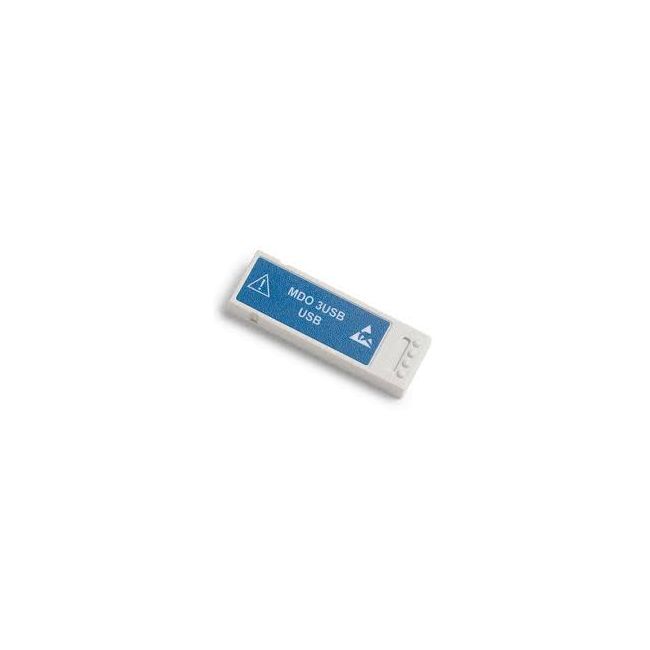

The Tektronix MDO3USB module enables MDO3000 Series oscilloscopes with USB-specific capabilities, including automated trigger, decode, and search for USB 2.0 signals. It supports low, full, and high-speed USB and includes basic support for USB 3.0.
This module features one-button USB compliance testing, live protocol decode, event logging, and CSV export. Seamless integration means no PC is required for operation.
Testwall can supply the used Tektronix MDO3USB, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO3USB.
