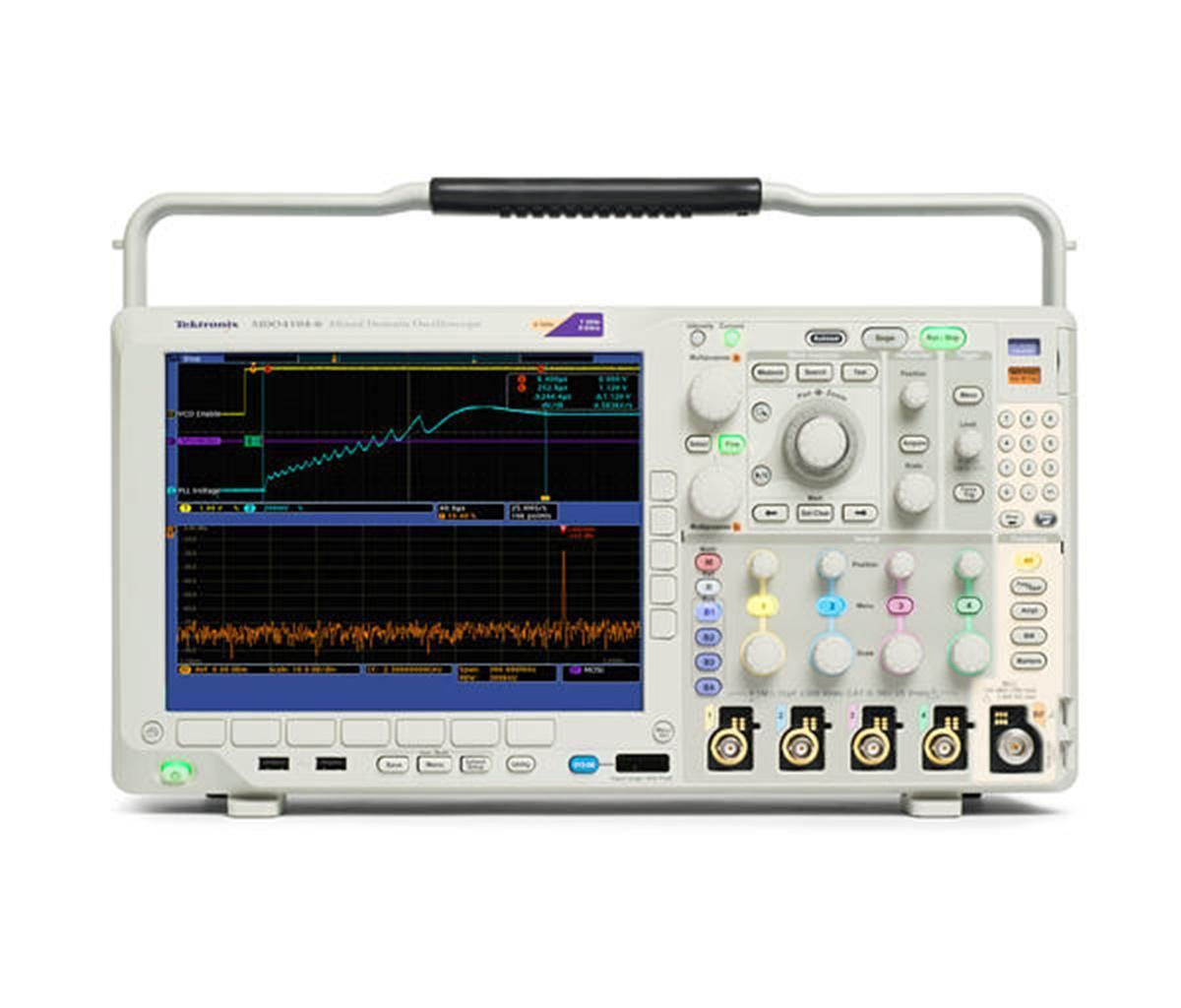

Tektronix MDO4054-6
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Analog Channels | 4 |
| Sample Rate | 2.5 GS/s |
| Record Length | 20 M points |
| Integrated Spectrum Analyzer Frequency Range | 9 kHz to 6 GHz |
| Digital Channels | 16 (with optional logic analyzer probe) |
| Vertical Resolution | 8 bits |
| Display | 10.4 inch WVGA color display |
| Waveform Capture Rate | 340,000 waveforms per second |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
Tektronix MDO4054-6 Options:
- MDO4054-6 - MDO4TRIG - Advanced RF Triggering application module (enables Timeout, Sequence/B Trigger, Pulse Width, Runt, and Logic trigger types on RF input)
| Model | MDO4054-6 |
|---|
The Tektronix MDO4054-6 Mixed Domain Oscilloscope offers 4 analog channels, 500 MHz bandwidth, and 2.5 GS/s sample rate, delivering ultra-wide capture bandwidth over 1 GHz and a 50 kHz–6 GHz RF range. Integrated RF, analog, and digital input visualization provides full-system insight via time-correlated displays. Features include advanced RF triggers, Spectrum Time analysis, and serial/parallel bus decoding.
Ideal for debugging complex designs, it includes RF vs Time Traces and latency measurement tools, built on the MSO4000B platform with DPO Technology and Wave Inspector®.
Testwall can supply the used Tektronix MDO4054-6, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO4054-6.
