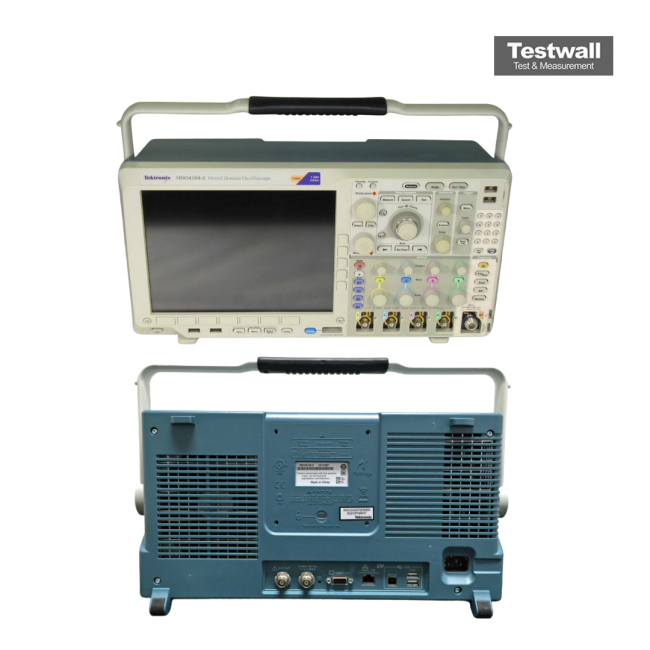

Tektronix MDO4104-3
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Analog Channels | 4 |
| Sample Rate | 5 GS/s |
| Record Length | 20 M points |
| Integrated Spectrum Analyzer Frequency Range | 9 kHz to 3 GHz |
| Vertical Resolution | 8 bits |
| Number of Digital Channels | 16 |
| Arbitrary Function Generator (AFG) | Integrated, 50 MHz |
| Display | 10.4 inch (264 mm) color display |
| Serial Bus Analysis | I2C, SPI, RS-232/422/485/UART, USB, CAN, LIN, FlexRay, MIL-STD-1553, and more (optional) |
Tektronix MDO4104-3 Options:
Options available for the Tektronix MDO4000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- MDO4104-3 - MDO4TRIG - Advanced RF power level triggering
- MDO4104-3 - DPO4AERO - Aerospace serial triggering and analysis (MIL-STD-1553)
- MDO4104-3 - DPO4AUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MDO4104-3 - DPO4AUTO - Automotive serial triggering and analysis (CAN, LIN)
- MDO4104-3 - DPO4AUTOMAX - Extended automotive serial triggering and analysis (CAN, LIN, FlexRay)
- MDO4104-3 - DPO4COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- MDO4104-3 - DPO4EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MDO4104-3 - DPO4ENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- MDO4104-3 - DPO4USB - USB 2.0 serial triggering and analysis
- MDO4104-3 - DPO4LMT - Limit and mask testing
- MDO4104-3 - DPO4PWR - Power measurement and analysis
- MDO4104-3 - DPO4VID - Extended video triggering
- MDO4104-3 - DPO4BND - Application bundle (all DPO4 serial, power, limit/mask and video modules)
The Tektronix MDO4104-3 Mixed Domain Oscilloscope features 4 analog channels with 1 GHz bandwidth, 5 GS/s sampling rate, and 20 M record length, plus 16 digital channels and one RF input covering 50 kHz–3 GHz. Its ultra‑wide >1 GHz capture bandwidth and advanced RF triggers deliver unparalleled signal insights.
Ideal for complex system debugging, it displays time‑correlated analog, digital, and RF signals simultaneously, including RF vs Time traces and comprehensive bus triggering/decoding.
Testwall can supply the used Tektronix MDO4104-3 Mixed Domain Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO4104-3 Mixed Domain Oscilloscope.
