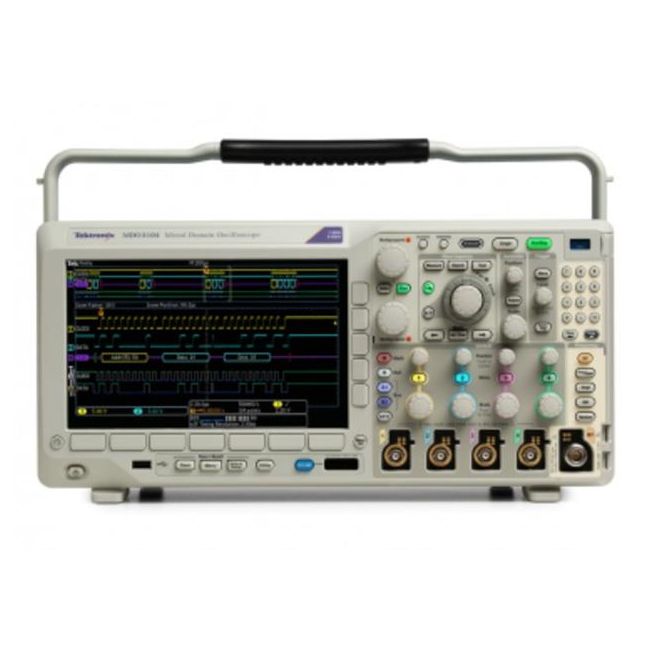

Tektronix MDO4104B-3
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Analog Channels | 4 |
| Sample Rate | 5 GS/s |
| Record Length | 20 M points |
| RF Frequency Range | 9 kHz to 3 GHz |
| Spectrum Analyzer | Integrated RF spectrum analyzer channel |
| Digital Channels | 16 (with optional MDO4000B Series logic analyzer module) |
| Vertical Resolution | 8-bit (11-bit with Hi Res mode) |
| Display | 10.4 inch (264 mm) WVGA color display |
| Waveform Capture Rate | 340,000 waveforms per second |
Tektronix MDO4104B-3 Options:
Options available for the Tektronix MDO4000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- MDO4104B-3 - MDO4TRIG - Advanced RF power level triggering
- MDO4104B-3 - DPO4AERO - Aerospace serial triggering and analysis (MIL-STD-1553)
- MDO4104B-3 - DPO4AUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MDO4104B-3 - DPO4AUTO - Automotive serial triggering and analysis (CAN, LIN)
- MDO4104B-3 - DPO4AUTOMAX - Extended automotive serial triggering and analysis (CAN, LIN, FlexRay)
- MDO4104B-3 - DPO4COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- MDO4104B-3 - DPO4EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MDO4104B-3 - DPO4ENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- MDO4104B-3 - DPO4USB - USB 2.0 serial triggering and analysis
- MDO4104B-3 - DPO4LMT - Limit and mask testing
- MDO4104B-3 - DPO4PWR - Power measurement and analysis
- MDO4104B-3 - DPO4VID - Extended video triggering
- MDO4104B-3 - DPO4BND - Application bundle (all DPO4 serial, power, limit/mask and video modules)
The Tektronix MDO4104B-3 Mixed Domain Oscilloscope offers 1 GHz bandwidth, 4 analog channels, 5 GS/s sampling, and a 3 GHz RF input. It integrates logic, spectrum, and protocol analysis into a single instrument.
Ideal for synchronized time and frequency domain analysis, it includes 20M record length and 16 digital channels for comprehensive testing.
Testwall can supply the used Tektronix MDO4104B-3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO4104B-3
