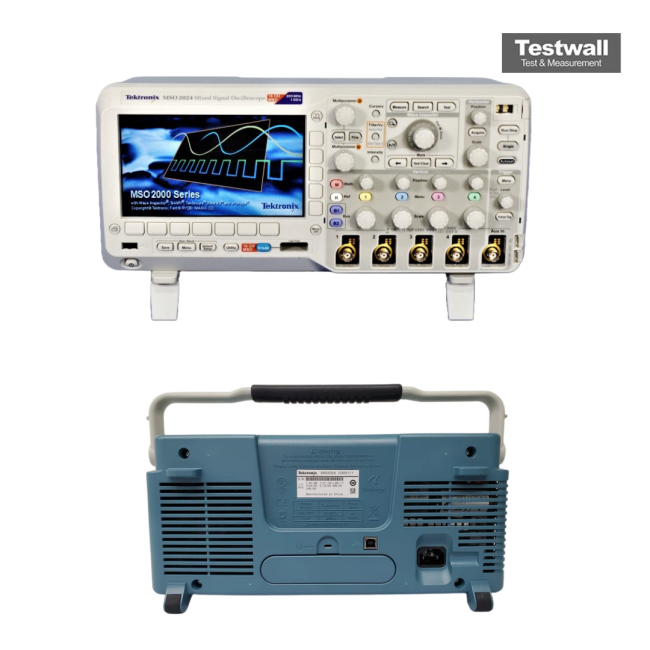

Tektronix MSO2024
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sample Rate | 1 GS/s on all channels simultaneously |
| Record Length | 1 M points on all channels |
| Vertical Resolution | 8-bit |
| Display | 7-inch WVGA color display (800 x 480 pixels) |
| Waveform Capture Rate | Up to 5,000 waveforms per second |
| Serial Bus Triggering and Analysis | I2C, SPI, CAN, LIN, RS-232/422/485/UART (optional) |
| Connectivity | USB 2.0 Host and Device ports, CompactFlash card slot |
Tektronix MSO2024 Options:
Options available for the Tektronix DPO/MSO2000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- MSO2024 - DPO2AUTO - Automotive serial triggering and analysis (CAN, LIN)
- MSO2024 - DPO2COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- MSO2024 - DPO2EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO2024 - DPO2PWR - Power measurement and analysis
- MSO2024 - DPO2BND - Application bundle (DPO2AUTO, DPO2COMP, DPO2EMBD, DPO2PWR)
- MSO2024 - DPO2CONN - Connectivity module (10/100 Ethernet, VGA output)
The Tektronix MSO2024 is a mixed signal oscilloscope featuring a 200 MHz bandwidth, 1 GS/s real-time sampling rate, and 20 input channels (4 analog + 16 digital). It includes advanced triggering and Wave Inspector® controls for efficient waveform navigation.
Designed for comprehensive signal analysis, the MSO2024 supports rapid debugging with deep memory and intuitive interface, ideal for embedded system design and debugging applications.
Testwall can supply the used Tektronix MSO2024, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO2024.
