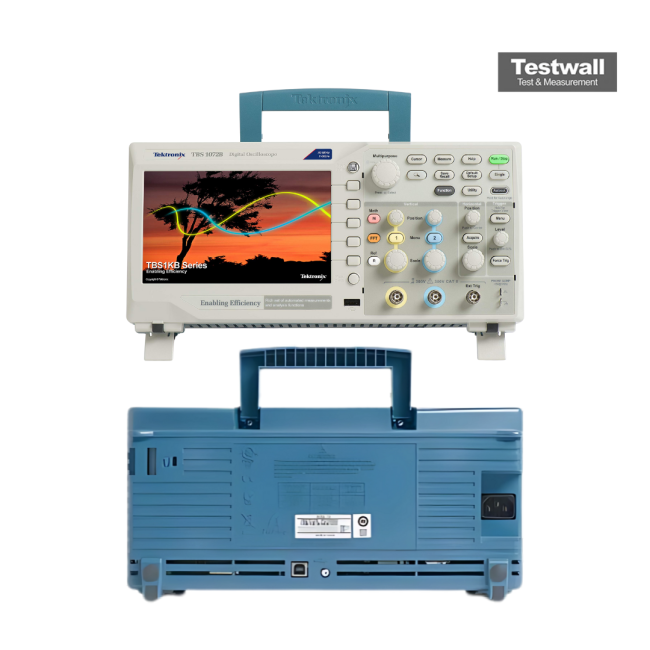

Tektronix TBS1072B-EDU
| Attribute | Value |
|---|---|
| Bandwidth | 70 MHz |
| Number of Channels | 2 |
| Sample Rate | 1 GS/s |
| Record Length | 2,500 points |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Display | 7-inch WVGA (800 x 480) TFT color display |
| Connectivity | USB 2.0 Host and Device ports |
| Courseware Storage | Built-in courseware storage with support for instructor-created lab exercises |
Tektronix TBS1072B-EDU Options:
- TBS1072B-EDU - Opt. L1 - French overlay
- TBS1072B-EDU - Opt. L2 - Italian overlay
- TBS1072B-EDU - Opt. L3 - German overlay
- TBS1072B-EDU - Opt. L4 - Spanish overlay
- TBS1072B-EDU - Opt. L5 - Japanese overlay
- TBS1072B-EDU - Opt. L6 - Portuguese overlay
- TBS1072B-EDU - Opt. L7 - Simplified Chinese overlay
- TBS1072B-EDU - Opt. L8 - Traditional Chinese overlay
- TBS1072B-EDU - Opt. L9 - Korean overlay
- TBS1072B-EDU - Opt. L10 - Russian overlay
- TBS1072B-EDU - Opt. A0 - North America power plug (115 V, 60 Hz)
- TBS1072B-EDU - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- TBS1072B-EDU - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- TBS1072B-EDU - Opt. A3 - Australia power plug (240 V, 50 Hz)
- TBS1072B-EDU - Opt. A4 - North America power plug (240 V, 50 Hz)
- TBS1072B-EDU - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- TBS1072B-EDU - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- TBS1072B-EDU - Opt. A10 - China power plug (50 Hz)
- TBS1072B-EDU - Opt. A11 - India power plug (50 Hz)
- TBS1072B-EDU - Opt. A12 - Brazil power plug (60 Hz)
- TBS1072B-EDU - Opt. A99 - No power cord
- TBS1072B-EDU - Opt. D1 - Calibration Data Report
- TBS1072B-EDU - TBS1XX2B-EDU P2220 - Replaces standard probes with P2220 probes (200 MHz passive voltage probes with 1x/10x attenuation)
| Model | TBS1072B-EDU |
|---|
The TEKTRONIX-TBS1072B-EDU is a 70 MHz, 2-channel digital storage oscilloscope with up to 1 GS/s sample rate and 2.5k point record length per channel. It features advanced triggering, automated 34 measurements, dual window FFT for time and frequency domain analysis, and built-in waveform limit testing. A 7-inch WVGA TFT display and dual USB ports offer both clarity and connectivity.
This oscilloscope includes a dual channel frequency counter, automated data logging, zoom function, and multilingual UI. Its compact, lightweight design ensures ease of use in educational and professional environments.
Testwall can supply the used TEKTRONIX-TBS1072B-EDU, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the TEKTRONIX-TBS1072B-EDU.
