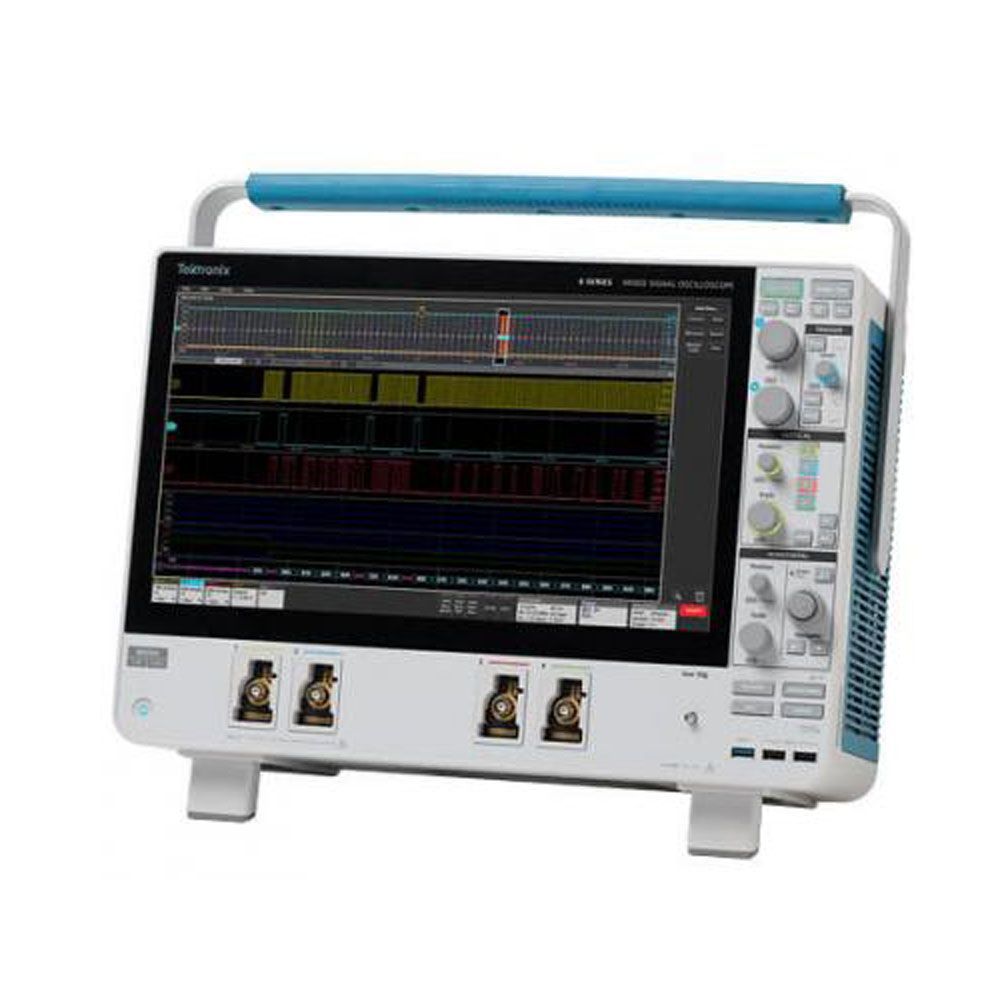

Tektronix MSO24
Mixed signal oscilloscope, 4 analog + 16 digital channels, 70 MHz to 500 MHz, 2.5 GS/s (2 Series MSO)
70 MHz to 500 MHz (by bandwidth option) Bandwidth
4 Number of Analog Channels
16 (optional 2-MSO logic probe) Digital Channels
2.5 GS/s Sample Rate
10 M points Record Length
The Tektronix MSO24 is a versatile mixed-signal oscilloscope built for engineers who need fast, reliable insight into analog and digital signals alike.
Key specifications:
- Four analog channels with selectable bandwidth from 70 MHz up to 500 MHz
- 16 optional digital channels for combined analog/digital debugging on a single instrument
- Sample rates up to 2.5 GS/s
- 10 M points of record length per channel
- Waveform capture rate exceeding 4 million waveforms per second
A bright 10.1-inch capacitive touchscreen display makes navigation intuitive, while built-in trigger, search, and math tools (including FFT and an advanced equation editor) speed up everyday debugging.
Optional add-ons include:
- Serial protocol decode (I2C, SPI, CAN, LIN, and more)
- Arbitrary function generator
- Digital pattern generator
- Hot-swappable battery pack for true portable operation
Backed by a standard one-year warranty, the MSO24 is a compact yet powerful bench tool suited for embedded design, automotive, and general-purpose testing applications.
Available configurations
| Model | Bandwidth | Channels |
| MSO24 2-BW-70 | 70 MHz | 4 |
| MSO24 2-BW-100 | 100 MHz | 4 |
| MSO24 2-BW-200 | 200 MHz | 4 |
| MSO24 2-BW-350 | 350 MHz | 4 |
| MSO24 2-BW-500 | 500 MHz | 4 |
