Tektronix MSO3032
| Attribute | Value |
|---|---|
| Bandwidth | 300 MHz |
| Analog Channels | 2 |
| Digital Channels | 16 |
| Sample Rate | 2.5 GS/s |
| Record Length | 5,000,000 points |
| Vertical Resolution | 8 bits |
| Waveform Capture Rate | 50,000 waveforms per second |
| Display | 7-inch WVGA (800 x 480) TFT LCD color display |
| Input Impedance | 1 MΩ or 50 Ω |
| Connectivity | USB 2.0 Host and Device ports, Ethernet (LAN), CompactFlash card slot |
Tektronix MSO3032 Options:
- MSO3032 - DPO3AUDIO - Audio Serial Triggering and Analysis Module. Enables triggering on packet-level information on I2S, Left Justified, Right Justified, TDM, and custom audio buses, as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3032 - DPO3AUTO - Automotive Serial Triggering and Analysis Module. Enables triggering on packet-level information on CAN bus and LIN bus as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3032 - DPO3COMP - Computer Serial Triggering and Analysis Module. Enables triggering on packet-level information on RS-232/422/485/UART buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3032 - DPO3EMBD - Embedded Serial Triggering and Analysis Module. Enables triggering on packet-level information on I2C and SPI buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3032 - DPO3PWR - Power Analysis Module. Enables quick and accurate analysis of power quality, switching loss, harmonics, safe operating area (SOA), modulation, ripple, and slew rate (dI/dt, dV/dt).
- MSO3032 - DPO3VID - HDTV and Custom (nonstandard) Video Triggering Module.
- MSO3032 - Opt. A0 - North America power plug
- MSO3032 - Opt. A1 - Universal Euro power plug
- MSO3032 - Opt. A2 - United Kingdom power plug
- MSO3032 - Opt. A3 - Australia power plug
- MSO3032 - Opt. A5 - Switzerland power plug
- MSO3032 - Opt. A6 - Japan power plug
- MSO3032 - Opt. A10 - China power plug
- MSO3032 - Opt. A11 - India power plug
- MSO3032 - Opt. A99 - No power cord
- MSO3032 - Opt. L0 - English manual
- MSO3032 - Opt. L1 - French manual
- MSO3032 - Opt. L2 - Italian manual
- MSO3032 - Opt. L3 - German manual
- MSO3032 - Opt. L4 - Spanish manual
- MSO3032 - Opt. L5 - Japanese manual
- MSO3032 - Opt. L6 - Portuguese manual
- MSO3032 - Opt. L7 - Simplified Chinese manual
- MSO3032 - Opt. L8 - Traditional Chinese manual
- MSO3032 - Opt. L9 - Korean manual
- MSO3032 - Opt. L10 - Russian manual
- MSO3032 - Opt. L99 - No manual
- MSO3032 - Opt. C3 - Calibration Service 3 years
- MSO3032 - Opt. C5 - Calibration Service 5 years
- MSO3032 - Opt. CA1 - Provides a single calibration event, or coverage for the designated calibration interval, whichever comes first
- MSO3032 - Opt. D1 - Calibration Data Report
- MSO3032 - Opt. D3 - Calibration Data Report 3 years (with Opt. C3)
- MSO3032 - Opt. D5 - Calibration Data Report 5 years (with Opt. C5)
- MSO3032 - Opt. R5 - Repair Service 5 years (including warranty)
| Model | MSO3032 |
|---|

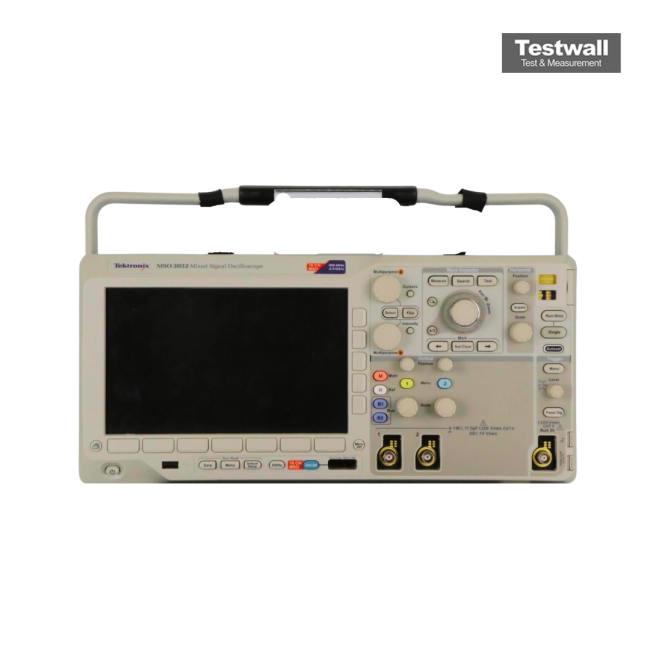

The Tektronix MSO3032 Mixed-Signal Oscilloscope combines 2 analog and 16 digital channels with a 300 MHz bandwidth and 5 Mpoint deep memory, enabling simultaneous analog and digital signal analysis. Its MagniVu™ technology delivers 121.2 ps resolution, ideal for precise timing diagnostics. Features include advanced triggering, Wave Inspector® navigation, TekVPI® probe support, a 9" WVGA display, and high-speed USB and Ethernet connectivity.
Used for analyzing embedded systems and communication protocols like I2C, SPI, CAN, RS-232, and more, the MSO3032 is essential for engineers needing efficient debug tools for mixed-signal designs.
Testwall can supply the used Tektronix MSO3032, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO3032.
