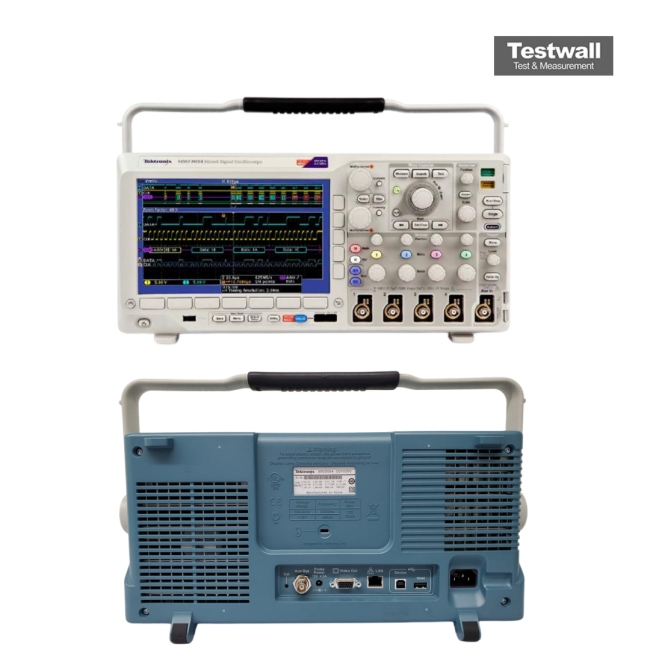

Tektronix MSO3054
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sample Rate | 2.5 GS/s |
| Record Length | 5,000,000 points |
| Vertical Resolution | 8 bits |
| Display | 7-inch WVGA (800 x 480) TFT LCD Color Display |
| Waveform Capture Rate | 50,000 waveforms per second |
| Serial Bus Triggering and Analysis | I2C, SPI, CAN, LIN, RS-232/422/485/UART (optional) |
| Input Impedance | 1 MΩ ± 1% in parallel with 11.5 pF ± 2 pF |
Tektronix MSO3054 Options:
Options available for the Tektronix DPO/MSO3000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- MSO3054 - DPO3AERO - Aerospace serial triggering and analysis (MIL-STD-1553)
- MSO3054 - DPO3AUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MSO3054 - DPO3AUTO - Automotive serial triggering and analysis (CAN, LIN)
- MSO3054 - DPO3COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- MSO3054 - DPO3EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO3054 - DPO3FLEX - FlexRay serial triggering and analysis
- MSO3054 - DPO3PWR - Power measurement and analysis
- MSO3054 - DPO3VID - Extended video triggering
The Tektronix MSO 3054 Mixed Signal Oscilloscope delivers a 500 MHz bandwidth and a 2.5 GS/s sample rate, combining digital and analog signal analysis. It includes the original manual and CDs, and the scope passes all self-tests to ensure readiness.
Ideal for mixed signal debugging and testing, this oscilloscope offers robust performance for engineers and technicians needing accurate waveform visualization and data capture.
Testwall can supply the used Tektronix MSO 3054, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO 3054.
