Tektronix MSO44 4-BW-1000 4 Series MSO
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Analog Channels | 4 |
| Sample Rate | 6.25 GS/s |
| Record Length | 31.25 M points |
| Vertical Resolution | 12-bit ADC |
| Digital Channels | Up to 32 digital channels (with TLP058 logic probe) |
| Display | 13.3-inch HD (1920 x 1080) capacitive touchscreen |
| Waveform Capture Rate | 500,000 waveforms per second |
| Input Impedance | 1 MΩ and 50 Ω |
| Serial Bus Decode Support | I2C, SPI, RS-232/422/485/UART, CAN, LIN, FlexRay, USB, Ethernet, and more |
Tektronix MSO44 4-BW-1000 4 Series MSO Options:
- MSO44 - 4-BW-200 - 200 MHz Bandwidth
- MSO44 - 4-BW-350 - 350 MHz Bandwidth
- MSO44 - 4-BW-500 - 500 MHz Bandwidth
- MSO44 - 4-BW-1000 - 1 GHz Bandwidth
- MSO44 - 4-BW-1500 - 1.5 GHz Bandwidth
- MSO44 - 4-RL-1 - Extend record length from 31.25 Mpoints/channel to 62.5 Mpoints/channel
- MSO44 - 4-AFG - Add Arbitrary / Function Generator
- MSO44 - 4-SEC - Add enhanced security for instrument declassification and password protected enabling and disabling of all USB and Ethernet ports and firmware upgrade
- MSO44 - 4-SRAERO - Aerospace serial triggering and analysis (MIL-STD-1553, ARINC 429)
- MSO44 - 4-SRAUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MSO44 - 4-SRAUTO - Automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay, and CAN symbolic decoding)
- MSO44 - 4-SRAUTOSEN - Automotive sensor serial triggering and analysis (SENT)
- MSO44 - 4-SRCOMP - Computer serial triggering and analysis (RS-232/422/485/UART)
- MSO44 - 4-SREMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO44 - 4-SRENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- MSO44 - 4-SRI3C - MIPI I3C serial analysis (I3C decode and search only)
- MSO44 - 4-SRPM - Power Management serial triggering and analysis (SPMI)
- MSO44 - 4-SRUSB2 - USB 2.0 serial bus triggering and analysis (LS, FS, HS)
- MSO44 - 4-PWR-BAS - Power Measurements and Analysis
- MSO44 - 4-SV-BAS - Spectrum View frequency domain analysis
- MSO44 - 4-PS2 - Power Solution Bundle (4-PWR-BAS, THDP0200, TCP0030A, 067-1686-xx deskew fixture)
| Model | MSO44 |
|---|

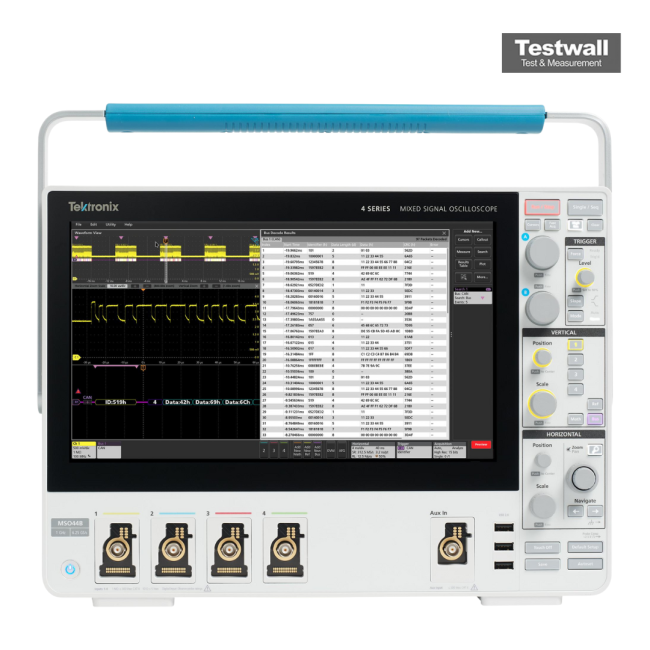

The Tektronix MSO44 4-BW-1000 offers 4 FlexChannel® inputs supporting analog and digital signals, with 1 GHz bandwidth, 6.25 GS/s real-time sample rate, and 12-bit resolution. The innovative UI with a 13.3” HD touchscreen enhances user experience and control.
Ideal for mixed signal analysis, it includes spectrum view, advanced triggers, and protocol decoding in a compact, upgradable design suited for embedded systems, power electronics, and automotive applications.
Testwall can supply the used Tektronix MSO44 4-BW-1000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO44 4-BW-1000.
