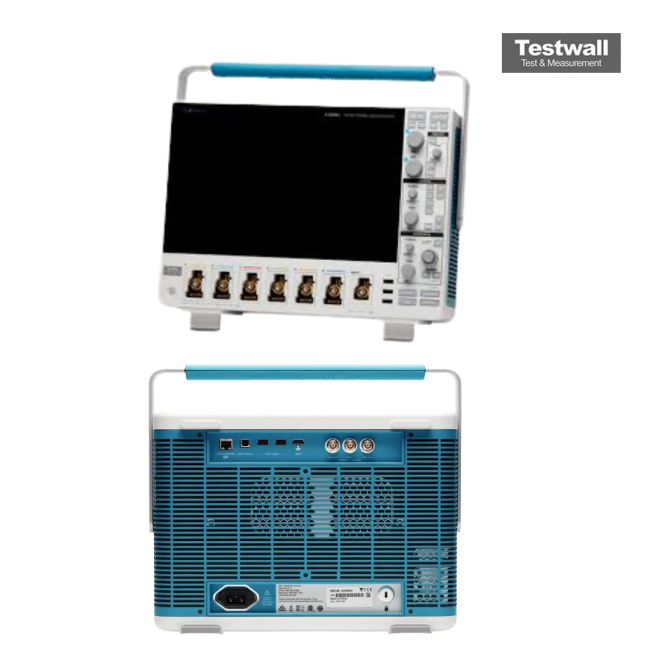

Tektronix MSO44 4-BW-1500 4 Series MSO
| Attribute | Value |
|---|---|
| Bandwidth | 1.5 GHz |
| Analog Channels | 4 |
| Sample Rate | 6.25 GS/s |
| Record Length | 31.25 M points |
| Vertical Resolution | 12-bit ADC |
| Digital Channels | Up to 32 digital channels (with TLP058 logic probe) |
| Display | 13.3-inch HD (1920 x 1080) capacitive touchscreen |
| Waveform Capture Rate | 500,000 waveforms per second |
| Connectivity | USB 3.0, USB 2.0, LAN (LXI), DisplayPort |
| Spectrum Analyzer | Integrated hardware-based spectrum analyzer (up to 1.5 GHz) |
Tektronix MSO44 4-BW-1500 4 Series MSO Options:
- MSO44 - 4-BW-200 - 200 MHz analog channel bandwidth
- MSO44 - 4-BW-350 - 350 MHz analog channel bandwidth
- MSO44 - 4-BW-500 - 500 MHz analog channel bandwidth
- MSO44 - 4-BW-1000 - 1 GHz analog channel bandwidth
- MSO44 - 4-BW-1500 - 1.5 GHz analog channel bandwidth
- MSO44 - 4-RL-1 - Extend record length from 31.25 Mpoints/channel to 62.5 Mpoints/channel
- MSO44 - 4-AFG - Add Arbitrary / Function Generator
- MSO44 - 4-SEC - Add enhanced security for instrument declassification and password protected enabling and disabling of all USB and Ethernet ports and firmware upgrade
- MSO44 - 4-SRAERO - Aerospace serial triggering and analysis (MIL-STD-1553, ARINC 429)
- MSO44 - 4-SRAUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MSO44 - 4-SRAUTO - Automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay, and CAN symbolic decoding)
- MSO44 - 4-SRAUTOSEN - Automotive sensor serial triggering and analysis (SENT)
- MSO44 - 4-SRCOMP - Computer serial triggering and analysis (RS-232/422/485/UART)
- MSO44 - 4-SREMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO44 - 4-SRENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- MSO44 - 4-SRI3C - MIPI I3C serial analysis (I3C decode and search only)
- MSO44 - 4-SRPM - Power Management serial triggering and analysis (SPMI)
- MSO44 - 4-SRUSB2 - USB 2.0 serial bus triggering and analysis (LS, FS, HS)
- MSO44 - 4-PWR-BAS - Power Measurements and Analysis
- MSO44 - 4-SV-BAS - Spectrum View frequency domain analysis
- MSO44 - 4-PS2 - Power Solution Bundle (4-PWR-BAS, THDP0200, TCP0030A, 067-1686-xx deskew fixture)
| Model | MSO44 |
|---|
The Tektronix MSO44 4-BW-1500 offers 4 FlexChannel® inputs with 1.5 GHz bandwidth, 6.25 GS/s sample rate, and 12-bit resolution, expandable up to 16 bits in high-resolution mode. It features a 13.3” HD touchscreen with flexible analog/digital configuration.
Designed for embedded systems, automotive electronics, and power supply applications, it provides spectrum view, advanced measurements, and integrated 6-in-1 instrument functions in a compact, upgradeable design.
Testwall can supply the used Tektronix MSO44 4-BW-1500, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO44 4-BW-1500.
