Tektronix SD44
4 GHz Bandwidth
4 Number of Channels
95 ps Rise Time
50 Ω Input Impedance
10 mV/div to 1 V/div Vertical Sensitivity
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Number of Channels | 4 |
| Rise Time | 95 ps |
| Input Impedance | 50 Ω |
| Vertical Sensitivity | 10 mV/div to 1 V/div |
| Maximum Input Voltage | 3 VRMS |
| Connector Type | SMA |
| Compatible Platform | Tektronix 11000 Series Mainframes |
| Module Type | Sampling Module |
| Dynamic Range | ±0.5 V at 50 Ω |
Tektronix SD44 Options:
- SA-42 - Opt. A1 - International Power Plug Option A1
- SA-42 - Opt. A2 - International Power Plug Option A2
- SA-42 - Opt. A3 - International Power Plug Option A3
- SA-42 - Opt. A4 - International Power Plug Option A4
- SA-42 - Opt. A5 - International Power Plug Option A5
- SA-42 - Opt. 1E - CE Certified Configuration: Delete Standard Power Supply/Charger
- SD-48 - Opt. RR - Add 10 Gb/s Hardware Filter (119-5916-00), SMA In-line Connector (015-1011-00), and Frequency Response Graph using a Typical SD-22 Electrical Sampling Head Performance with Boundary Limits per ITU-T COM15-264E
- SD-44 - 016-1609-00 - External Power Supply with SD-4x Adapter Cable; includes IEC Compatible Power Supply, SD-44/SD-48 Adapter Cable, U.S. Power Cord, Instruction Sheet
- SD-44 - 161-0066-09 - Alternative Power Cord, European (IEC Compatible)
- SD-44 - 161-0066-10 - Alternative Power Cord, UK (IEC Compatible)
- SD-44 - 161-0066-11 - Alternative Power Cord, Australia (IEC Compatible)
- SD-44 - 161-0154-00 - Alternative Power Cord, Switzerland (IEC Compatible)
- SD-44 - 119-5118-00 - DIN/FC Fiber Optic Hybrid Connector
- SD-44 - 015-0565-00 - 50Ω Power Divider, DC to 12 GHz (50% splitter), SMA Female
- SD-44 - 015-1014-00 - 50Ω Power Divider, DC to 12 GHz (50% splitter), SMA Male
- SD-44 - 119-5936-00 - SONET/SDH Hardware Filter (SMA), 155 Mb/s (117 MHz)
- SD-44 - 119-5929-00 - SONET/SDH Hardware Filter (SMA), 622 Mb/s (467 MHz)
- SD-44 - 119-5916-00 - SONET/SDH Hardware Filter (SMA), 10 Gb/s (with SD-48 and SD-22)
| Model | SD44 |
|---|

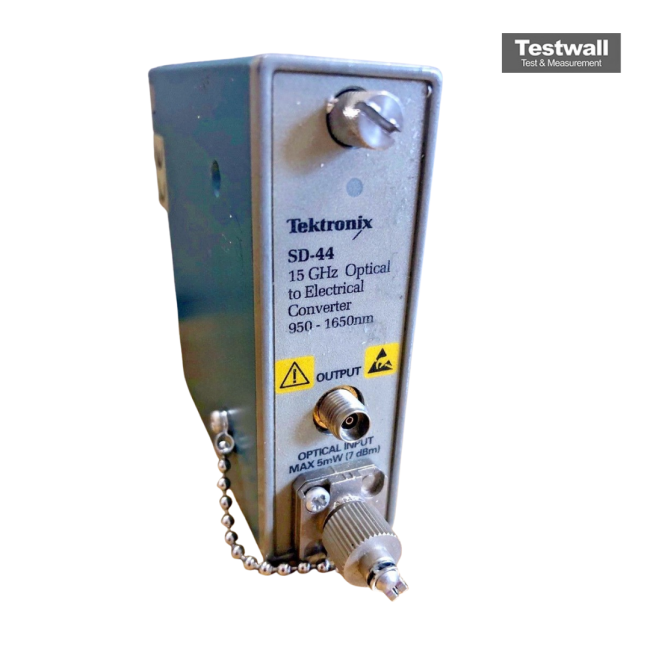

The Tektronix SD44 is an optical-to-electrical converter module capable of transforming high-speed optical signals from DC up to 15 GHz into precise electrical outputs for use with sampling oscilloscopes.
It features an FC/PC fiber connector, 3.5 mm high-fidelity electrical output, and is compatible with CSA803 or 11800-series slots, enabling accurate remote or direct installation.
Testwall can supply the used Tektronix SD44, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix SD44
