Tektronix

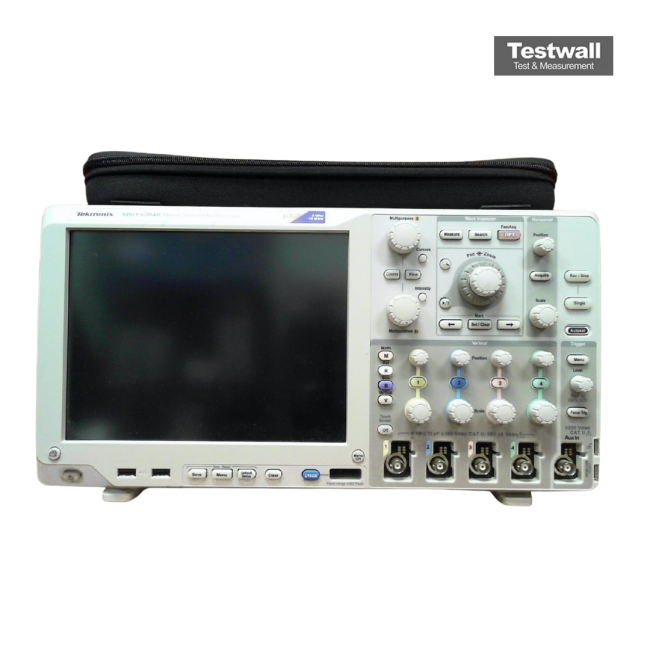

Tektronix MSO5204B
4+16-CH, DIGITAL, 2GHz Mixed Signal Oscilloscope
2 GHz Bandwidth
4 Analog + 16 Digital (MSO) Channels
10 GS/s (on all channels simultaneously) Sample Rate
25 M points standard (250 M points optional) Record Length
8 bits (11 bits with Hi Res mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 2 GHz |
| Channels | 4 Analog + 16 Digital (MSO) |
| Sample Rate | 10 GS/s (on all channels simultaneously) |
| Record Length | 25 M points standard (250 M points optional) |
| Vertical Resolution | 8 bits (11 bits with Hi Res mode) |
| Rise Time | 175 ps |
| Display | 10.4-inch WSVGA color LCD touchscreen |
| Waveform Capture Rate | Up to 340,000 waveforms per second |
| Input Impedance | 1 MΩ or 50 Ω selectable |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
Tektronix MSO5204B Options:
- MSO5204B - 5RL - Record Length: 125 M max, 50 M/Ch
- MSO5204B - 10RL - Record Length: 250 M max, 125 M/Ch
- MSO5204B - BRR - BroadR-Reach Compliance Testing (Requires TF-GBE-BTP or TF-GBE-ATP Ethernet Test Fixture)
- MSO5204B - DDRA - DDR Memory bus analysis (Requires Opt. DJA) (Available on 1 GHz and 2 GHz models only)
- MSO5204B - DJA - Jitter and Eye Analysis Tools – Advanced (DPOJET)
- MSO5204B - ET3 - Ethernet compliance test (Requires TF-GBE-BTP or TF-GBE-ATP Ethernet Test Fixture)
- MSO5204B - HSIC - USB HSIC protocol decode and electrical validation (Requires Opt. DJA) (Available on 2 GHz models only)
- MSO5204B - MOST - MOST Essentials – Electrical compliance and debug test solution for MOST50 and MOST150 (Requires Opt. DJA)
- MSO5204B - MTM - Mask testing (ITU-T, ANSI T1.102, Ethernet IEEE 802.3, SONET/SDH, Fibre Channel, USB, IEEE 1394b, Rapid I/O, OIF, CPRI, Video)
- MSO5204B - PWR - Power measurement and analysis
- MSO5204B - SR-AERO - Aerospace serial triggering and analysis (MIL-STD-1553)
- MSO5204B - SR-AUTO - Automotive serial triggering and analysis (CAN/LIN/FlexRay)
- MSO5204B - SR-COMP - Computer serial triggering and analysis (RS-232/422/485/UART)
- MSO5204B - SR-DPHY - MIPI D-PHY serial analysis (DSI-1, CSI-2)
- MSO5204B - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO5204B - SR-ENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- MSO5204B - SR-USB - USB 2.0 serial triggering and analysis (LS, FS, HS)
- MSO5204B - SVE - SignalVu Essentials – Vector signal analysis software
- MSO5204B - USB - USB 2.0 Compliance testing (Requires TDSUSBF USB Test Fixture; 2 GHz bandwidth required for high-speed USB)
- MSO5204B - USBPWR - Automated compliance test solution for USB power adapters
- MSO5204B - VNM - CAN/LIN Protocol analysis software
- MSO5204B - PS2 - Power Solution Bundle: DPOPWR, THDP0200, TCP0030A, 067-1686-xx (Deskew fixture)
- MSO5204B - PS3 - Power Solution Bundle: DPOPWR, TMDP0200, TCP0020, 067-1686-xx (Deskew fixture)
- MSO5204B - A0 - North America power plug (115 V, 60 Hz)
- MSO5204B - A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO5204B - A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO5204B - A3 - Australia power plug (240 V, 50 Hz)
- MSO5204B - A5 - Switzerland power plug (220 V, 50 Hz)
- MSO5204B - A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- MSO5204B - A10 - China power plug (50 Hz)
- MSO5204B - A11 - India power plug (50 Hz)
- MSO5204B - A12 - Brazil power plug (60 Hz)
- MSO5204B - A99 - No power cord
- MSO5204B - L0 - English manual
- MSO5204B - L1 - French manual
- MSO5204B - L3 - German manual
- MSO5204B - L5 - Japanese manual
- MSO5204B - L7 - Simplified Chinese manual
- MSO5204B - L8 - Traditional Chinese manual
- MSO5204B - L9 - Korean manual
- MSO5204B - L10 - Russian manual
- MSO5204B - L99 - No manual
- MSO5204B - C3 - Calibration Service 3 Years
- MSO5204B - C5 - Calibration Service 5 Years
- MSO5204B - D1 - Calibration Data Report
- MSO5204B - D3 - Calibration Data Report 3 Years (with Opt. C3)
- MSO5204B - D5 - Calibration Data Report 5 Years (with Opt. C5)
- MSO5204B - G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- MSO5204B - G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- MSO5204B - R3 - Repair Service 3 Years (including warranty)
- MSO5204B - R5 - Repair Service 5 Years (including warranty)
| Model | MSO5204B |
|---|
The Tektronix MSO5204B offers 2 GHz bandwidth and 10 GS/s sample rate for exceptional signal fidelity and analysis. It features integrated 16 digital channels and advanced math functions for comprehensive mixed-signal debugging. Includes four TPP01000 probes with 1 GHz bandwidth and low capacitive loading.
This oscilloscope simplifies complex signal acquisition with Visual Triggers and supports serial protocol decoding. Ideal for lab and bench use with Windows® software compatibility.
Testwall can supply the used Tektronix MSO5204B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO5204B.
