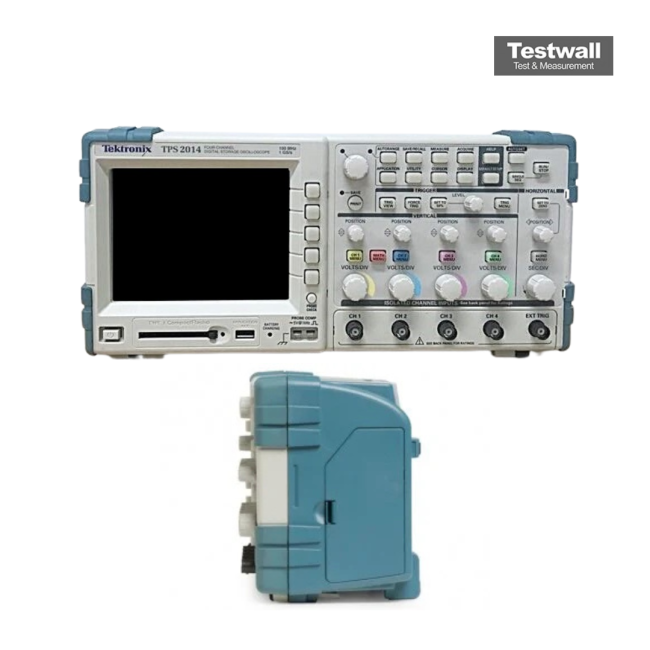

Tektronix TPS2014
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 200 MHz |
| Sample Rate | 2 GS/s (single channel), 1 GS/s (two channels), 500 MS/s (all channels) |
| Record Length | 2,500 points per channel |
| Vertical Resolution | 8 bits |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Display | 5.7-inch color LCD |
| Isolation | Floating, 300 V CAT II isolated per channel |
| Power Source | Battery or AC adapter (battery-powered portable oscilloscope) |
| Weight | Approximately 2.7 kg (6 lbs) with battery |
Tektronix TPS2014 Options:
Options available for the Tektronix TPS2000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TPS2014 - TPS2PWR1 - Power analysis application software
- TPS2014 - TPSBAT - Lithium-ion battery pack
- TPS2014 - TPSCHG - External battery charger
The Tektronix TPS2014 is a 4-channel, 100 MHz digital storage oscilloscope built for safety and portability with an isolated-channel design, enabling differential and floating measurements up to 600 VRMS CAT II. It supports a 1 GS/s real-time sample rate per channel, with DRT sampling for glitch detection and high-frequency event capture.
Ideal for field service and lab environments, it offers FFT analysis, long battery life with hot-swap support, and versatile PC connectivity via USB/RS-232 or CompactFlash.
Testwall can supply the used Tektronix TPS2014, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TPS2014.
