Tektronix

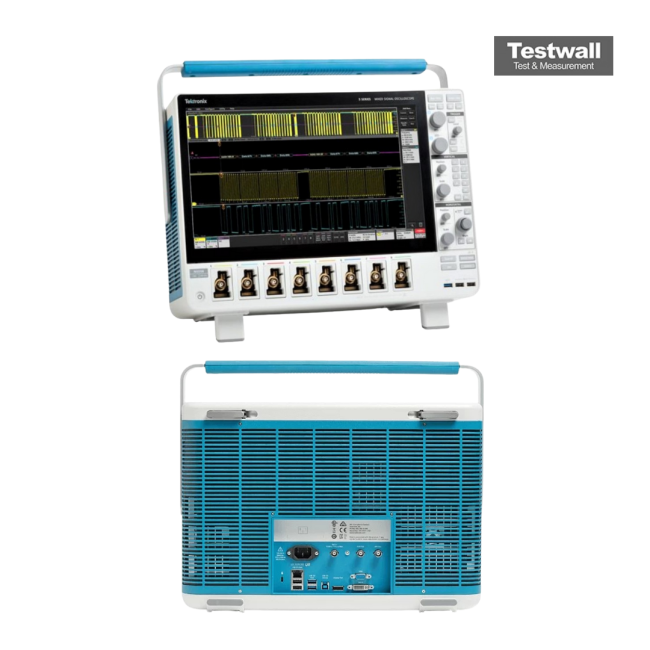

Tektronix MSO58-BW2000
2GHz Mixed Signal Oscilloscope (8+ up to 64-CH, Digital)
2 GHz Bandwidth
8 Number of Analog Channels
6.25 GS/s (all channels), 12.5 GS/s (4 channels), 25 GS/s (2 channels) Sample Rate
62.5 M points standard (up to 125 M points optional) Record Length
12-bit ADC (16-bit with High Resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 2 GHz |
| Number of Analog Channels | 8 |
| Sample Rate | 6.25 GS/s (all channels), 12.5 GS/s (4 channels), 25 GS/s (2 channels) |
| Record Length | 62.5 M points standard (up to 125 M points optional) |
| Vertical Resolution | 12-bit ADC (16-bit with High Resolution mode) |
| Digital Channels | 8 digital channels (with TLP058 logic probe) |
| Display | 15.6-inch HD (1920 x 1080) capacitive touchscreen |
| Waveform Capture Rate | 500,000 waveforms per second |
| Connectivity | USB 3.0, USB 2.0, DisplayPort, LAN (1000BASE-T), optional PCIe |
| Operating System | Windows 10 (64-bit) |
Tektronix MSO58-BW2000 Options:
- MSO58-BW2000 - 5-RL-125 - Extend record length to 125 Mpoints/channel
- MSO58-BW2000 - 5-WIN - Add removable SSD with Windows 10 license
- MSO58-BW2000 - 5-AFG - Add Arbitrary / Function Generator
- MSO58-BW2000 - 5-SRAUDIO - Serial bus triggering, decode and search: Audio (I2S, LJ, RJ, TDM)
- MSO58-BW2000 - 5-SRAUTO - Serial bus triggering, decode and search: Automotive (CAN, LIN, FlexRay)
- MSO58-BW2000 - 5-SRCOMP - Serial bus triggering, decode and search: Computer (RS-232/422/485/UART)
- MSO58-BW2000 - 5-SREMBD - Serial bus triggering, decode and search: Embedded (I2C, SPI)
- MSO58-BW2000 - 5-SRENET - Serial bus triggering, decode and search: Ethernet (10BASE-T, 100BASE-TX)
- MSO58-BW2000 - 5-SRUSB2 - Serial bus triggering, decode and search: USB (USB2.0 LS, FS, HS)
- MSO58-BW2000 - 5-DJA - Advanced Jitter and Eye Analysis
- MSO58-BW2000 - T3 - Three Year Total Protection Plan
- MSO58-BW2000 - T5 - Five Year Total Protection Plan
- MSO58-BW2000 - R5 - Standard Warranty Extended to 5 Years
- MSO58-BW2000 - C3 - Calibration Service 3 Years
- MSO58-BW2000 - C5 - Calibration Service 5 Years
- MSO58-BW2000 - D1 - Calibration Data Report
- MSO58-BW2000 - D3 - Calibration Data Report 3 Years (with Option C3)
- MSO58-BW2000 - D5 - Calibration Data Report 5 Years (with Option C5)
- MSO58-BW2000 - A0 - North America power plug (115 V, 60 Hz)
- MSO58-BW2000 - A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO58-BW2000 - A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO58-BW2000 - A3 - Australia power plug (240 V, 50 Hz)
- MSO58-BW2000 - A5 - Switzerland power plug (220 V, 50 Hz)
- MSO58-BW2000 - A6 - Japan power plug (100 V, 50/60 Hz)
- MSO58-BW2000 - A10 - China power plug (50 Hz)
- MSO58-BW2000 - A11 - India power plug (50 Hz)
- MSO58-BW2000 - A12 - Brazil power plug (60 Hz)
- MSO58-BW2000 - A99 - No power cord
| Model | MSO58-BW2000 |
|---|
The Tektronix MSO58-BW2000 is an 8-channel mixed signal oscilloscope offering 2 GHz bandwidth, FlexChannel® inputs, 6.25 GS/s sampling, and 62.5M standard record length. It features 12-bit resolution, a 15.6-inch HD touchscreen, advanced trigger types, and Spectrum View for frequency analysis.
Ideal for embedded design, protocol debugging, and signal integrity testing with flexible upgrades and modular architecture.
Testwall can supply the used Tektronix MSO58-BW2000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO58-BW2000.
