Tektronix

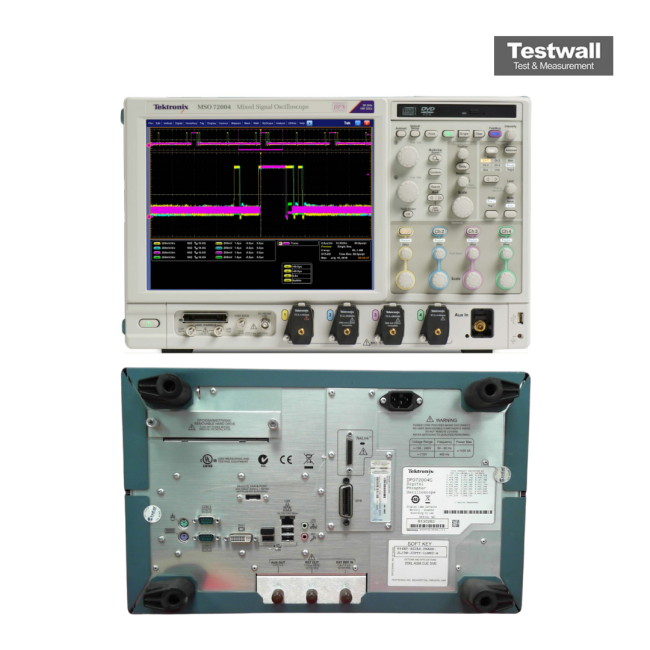

Tektronix MSO72004
4+16-CH, DIGITAL, 20GHz Mixed Signal Oscilloscope
20 GHz Bandwidth
4 Number of Analog Channels
50 GS/s on 1 or 2 channels; 25 GS/s on all 4 channels Sample Rate
Up to 250 Mpoints per channel Record Length
16 (with MSO option) Number of Digital Channels
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz |
| Number of Analog Channels | 4 |
| Sample Rate | 50 GS/s on 1 or 2 channels; 25 GS/s on all 4 channels |
| Record Length | Up to 250 Mpoints per channel |
| Number of Digital Channels | 16 (with MSO option) |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Rise Time | 17.5 ps (typical) |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 12.1-inch (307 mm) TFT color display, XGA resolution (1024 x 768) |
| Operating System | Windows XP Professional |
Tektronix MSO72004 Options:
- MSO72004 - Opt. 2XL - 20 MS/Ch Record Length
- MSO72004 - Opt. 5XL - 50 MS/Ch Record Length
- MSO72004 - Opt. 10XL - 125 MS/Ch Record Length
- MSO72004 - Opt. 20XL - 250 MS/Ch Record Length
- MSO72004 - Opt. DSAU - MSO Digital Serial Analysis Bundle, includes Opt. 2XL, ASM, DJA, MTH, and PTH (for MSO71254, MSO71604, or MSO72004)
- MSO72004 - Opt. ASM - Advanced Event Search and Mark
- MSO72004 - Opt. LT - Waveform Limit Testing
- MSO72004 - Opt. MTH - Mask testing for Serial Standards up to 6 Gb/s. Includes hardware clock recovery for up to 6.25 Gb/s
- MSO72004 - Opt. PTH - Protocol Triggering and Decoding for 8b/10b-encoded Serial Signals up to 3.125 Gb/s. Includes hardware clock recovery and pattern lock triggering
- MSO72004 - Opt. PTU - Protocol Triggering and Decoding for 8b/10b-encoded Serial Signals up to 6.25 Gb/s
- MSO72004 - Opt. D-PHY - MIPI D-PHY Essentials – Characterization and Compliance Test Solution
- MSO72004 - Opt. DDRA - DDR Memory Bus Analysis
- MSO72004 - Opt. DJA - DPOJET Jitter and Eye Diagram Analysis
- MSO72004 - Opt. DSPT - DisplayPort Compliance Test Solution
- MSO72004 - Opt. DVI - DVI Compliance Test Solution
- MSO72004 - Opt. ET3 - Ethernet Compliance Test Software
- MSO72004 - Opt. HEAC - HEAC Automated Solution
- MSO72004 - Opt. HT3 - HDMI Compliance Test Software
- MSO72004 - Opt. HT3DS - HDMI Direct Synthesis for HDMI 1.4
- MSO72004 - Opt. IBA - InfiniBand Compliance Module for RT-Eye Analysis Software
- MSO72004 - Opt. PCE - PCI Express Analysis Software
- MSO72004 - Opt. PWR - Power Measurement and Analysis Software
- MSO72004 - Opt. RTE - RT-Eye Serial Data Compliance and Analysis Software
- MSO72004 - Opt. SLA - Serial Data Link Analysis Advanced (with Equalization)
- MSO72004 - Opt. SLE - Serial Data Link Analysis Essentials (no Equalization)
- MSO72004 - Opt. SST - SATA and SAS Analysis Software Module for RT-Eye Analysis Software
- MSO72004 - Opt. SVE - SignalVu Essentials – Vector Signal Analysis Software
- MSO72004 - Opt. SVM - General Purpose Modulation Analysis. Requires Opt. SVE
- MSO72004 - Opt. SVP - Advanced Signal Analysis (including pulse measurements). Requires Opt. SVE
- MSO72004 - Opt. USB - USB 2.0 Compliance Test Software
- MSO72004 - Opt. USB3 - USB 3.0 Compliance and Analysis Software
- MSO72004 - Opt. UWB - Ultra Wideband Spectral Analysis (includes WiMedia Alliance PHY interf. testing)
- MSO72004 - Opt. UWBE - Ultra Wideband Spectral Analysis Essentials
- MSO72004 - Opt. XGbT - 10GBASE-T Automated Solution
- MSO72004 - Opt. TEKEXP - TekExpress Automation Framework
- MSO72004 - Opt. SATA-TSG - SATA PHY/TSG/OOB Transmitter Tests for TekExpress
- MSO72004 - Opt. SATA-RSG - SATA RSG/RMT Receiver Tests for TekExpress
- MSO72004 - Opt. SATA-RXTX - SATA Rx/Tx Channel Tests for TekExpress
- MSO72004 - Opt. SATA-DHB - SATA TekExpress SW Bundle (TSG, RSG, RXTX for Hosts or Devices)
- MSO72004 - Opt. SATA-SI - SATA SI Cable Tests for TekExpress
- MSO72004 - Opt. USB-TX - TekExpress Automated USB 3.0 Solution
- MSO72004 - Opt. L0 - English manual
- MSO72004 - Opt. L1 - French manual
- MSO72004 - Opt. L3 - German manual
- MSO72004 - Opt. L5 - Japanese manual
- MSO72004 - Opt. L7 - Simple Chinese manual
- MSO72004 - Opt. L8 - Standard Chinese manual
- MSO72004 - Opt. L9 - Korean manual
- MSO72004 - Opt. L10 - Russian manual
- MSO72004 - Opt. L99 - No manual
- MSO72004 - Opt. A0 - US plug, 115 V, 60 Hz
- MSO72004 - Opt. A1 - Euro plug, 220 V, 50 Hz
- MSO72004 - Opt. A2 - UK plug, 240 V, 50 Hz
- MSO72004 - Opt. A3 - Australian plug, 240 V, 50 Hz
- MSO72004 - Opt. A5 - Swiss plug, 220 V, 50 Hz
- MSO72004 - Opt. A6 - Japanese plug, 100 V, 110/120 V, 60 Hz
- MSO72004 - Opt. A10 - China plug, 50 Hz
- MSO72004 - Opt. A11 - India plug, 50 Hz
- MSO72004 - Opt. A99 - No power cord
- MSO72004 - Opt. CA1 - Single calibration or functional verification
- MSO72004 - Opt. C3 - Calibration Service 3 Years
- MSO72004 - Opt. C5 - Calibration Service 5 Years
- MSO72004 - Opt. D1 - Calibration Data Report
- MSO72004 - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- MSO72004 - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- MSO72004 - Opt. R3 - Repair Service 3 Years
- MSO72004 - Opt. R5 - Repair Service 5 Years
- MSO72004 - Opt. IN - Product Installation Service
- MSO72004 - Opt. IF - Upgrade Installation Service
| Model | MSO72004 |
|---|
The Tektronix MSO72004 is a 20GHz Mixed Signal Oscilloscope designed for superior signal acquisition and analysis, supporting both analog and digital signals. It delivers unmatched measurement precision for high-speed designs.
It integrates oscilloscope and logic analyzer capabilities, making it ideal for debugging and validation tasks in real-time mixed-signal environments.
Testwall can supply the used Tektronix MSO72004, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO72004
