Tektronix

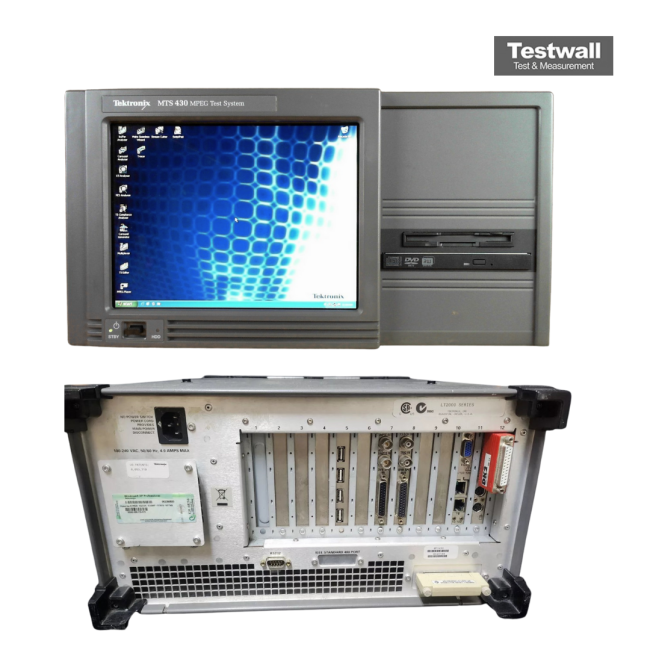

Tektronix MTS430
MPEG Test System
MPEG-2 transport stream monitoring and analysis with real-time error detection Transport Stream Analysis
ASI (Asynchronous Serial Interface) and SMPTE 310M inputs supported Input Interface
MPEG-2 Systems, DVB, ATSC, and SCTE standards compliance verification Compliance Testing
TR 101 290 Priority 1, 2, and 3 error monitoring and logging Error Detection
Transport stream bit rate measurement up to 216 Mbps Bit Rate Monitoring
| Attribute | Value |
|---|---|
| Transport Stream Analysis | MPEG-2 transport stream monitoring and analysis with real-time error detection |
| Input Interface | ASI (Asynchronous Serial Interface) and SMPTE 310M inputs supported |
| Compliance Testing | MPEG-2 Systems, DVB, ATSC, and SCTE standards compliance verification |
| Error Detection | TR 101 290 Priority 1, 2, and 3 error monitoring and logging |
| Bit Rate Monitoring | Transport stream bit rate measurement up to 216 Mbps |
| Program Monitoring | Multi-program monitoring with PCR, PTS, and DTS analysis |
| Display Interface | Graphical user interface with hierarchical transport stream navigation |
| Recording Capability | Transport stream capture and recording for offline analysis |
| PCR Analysis | PCR jitter, accuracy, and arrival time interval analysis |
| Power Requirements | 100–240 VAC, 50/60 Hz universal power supply input |
Tektronix MTS430 Options:
- MTS430 - ES - Add ES Analyzer to MTS430
- MTS430 - DB - Add Carousel Analyzer to MTS430
- MTS430 - CG - Add Carousel Generator to MTS430
- MTS430 - DBCG - Add Carousel Analyzer and Carousel Generator to MTS430
- MTS430 - GBE - Add GbE (GigE) Video over IP interface to MTS400, includes IP analysis software
- MTS430 - CU - 1000BASE-T electrical port with RJ45 connector for MTS400 gigabit Ethernet interface
- MTS430 - LX - 1000BASE-LX long wavelength optical port with LC connector for MTS400 gigabit Ethernet interface (single mode 1310 NM)
- MTS430 - SX - 1000BASE-SX short wavelength optical port with LC connector for MTS400 gigabit Ethernet interface (multi mode 850 NM)
- MTS430 - ZX - 1000BASE-ZX long wavelength optical port with LC connector for MTS400 gigabit Ethernet interface (single mode 1550 NM)
- MTS430 - SWSM - First 12 months MTS400 software subscription (Does not include subscription to MTS4EA)
- MTS430 - CF - Add COFDM DVB-T interface to MTS430
- MTS430 - EP - Add QPSK/8PSK interface to MTS430
- MTS430 - QB2 - Add QAM (Annex B) interface to MTS430
- MTS430 - VS - Add 8VSB interface to MTS430
- MTS430 - R3 - Repair Service 3 years
- MTS430 - R5 - Repair service 5 years
- MTS430 - L0 - English Documentation
- MTS430 - L5 - Japanese Documentation
- MTS430 - L99 - Electronic User Documentation (No printed manuals)
- MTS430 - A0 - North American Power
- MTS430 - A1 - Universal Euro Power
- MTS430 - A2 - United Kingdom Power
- MTS430 - A3 - Australia Power
- MTS430 - A4 - 240V North America Power
- MTS430 - A5 - Switzerland Power
- MTS430 - A6 - Japan Power
- MTS430 - A10 - China Power
- MTS430 - A11 - India Power
- MTS430 - A99 - No Power cord or AC adapter
- MTS430 - 4EAB - Base software with video standard package including: MPEG-4 Simple Profile, H.263+, H.263, H.261, CD and Manual
- MTS430 - M4SP - MPEG-4 Advanced Simple Profile (Levels 0 – 5)
- MTS430 - M2ML - MPEG-2 Main Profile Main Level
- MTS430 - M2HL - MPEG-2 Main Profile High Level & High Level 1440 (High Definition)
- MTS430 - AVCE - H.264/AVC Baseline and Extended Profiles (Levels 1 – 5)
- MTS430 - AVCM - H.264/AVC Main Profile (Levels 1 – 5)
- MTS430 - SWSE - First 12 Months Software Subscription on the MTS4EA software and its options loaded on the MTS430, when purchased with a new MTS430. (Does not cover the MTS430 software.)
- MTS430 - VC-1 - VC-1 (all profiles, all levels) and Windows Media V9 (ASF)
- MTS430 - AUD - Audio (including AAC, HE AAC, AC-3)
| Model | MTS430 |
|---|
Tektronix MTS430 is a unique Compressed Digital Video Analyzer featuring CaptureVu™ for real-time capture and deferred-time analysis of complex, intermittent system faults.
Supporting MPEG, DVB, ATSC, ISDB, and ISDB-TB standards with cross-layer analysis, it enables IP4/IP6 multicast stream diagnostics, CBR/VBR stream analysis, and fault isolation.
Testwall can supply the used Tektronix MTS430, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MTS430.
