Tektronix

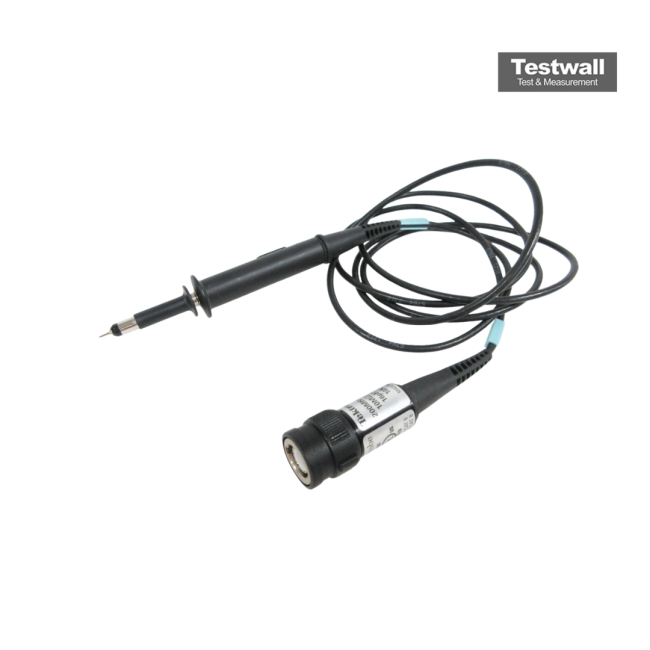

Tektronix P2221
Passive Voltage Probe -- 1x/10x Probes
200 MHz Bandwidth
1X / 10X Selectable Attenuation
1 MΩ in parallel with 100 pF Input Impedance (1X)
10 MΩ in parallel with 16 pF Input Impedance (10X)
150 VRMS CAT II Maximum Input Voltage (1X)
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Attenuation | 1X / 10X Selectable |
| Input Impedance (1X) | 1 MΩ in parallel with 100 pF |
| Input Impedance (10X) | 10 MΩ in parallel with 16 pF |
| Maximum Input Voltage (1X) | 150 VRMS CAT II |
| Maximum Input Voltage (10X) | 300 VRMS CAT II |
| Rise Time (10X) | ≤ 1.75 ns |
| Cable Length | 1.2 m (4 ft) |
| Connector Type | BNC |
| Compatible Oscilloscopes | Tektronix TBS1000, TDS2000, TPS2000, and other 1 MΩ input oscilloscopes |
| Model | P2221 |
|---|
The Tektronix P2221 is a 200 MHz passive voltage probe with selectable 1X/10X attenuation and 1.5 m cable length, designed for MSO2000 and DPO2000 Series oscilloscopes. It meets multiple safety standards including UL3111-1 and EN61010-2-031.
Ideal for low-frequency signal testing in power supplies, telecom, and computing systems. Compact and accurate for essential measurement tasks.
Testwall can supply the used Tektronix P2221, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P2221.
