Tektronix TDS2CMAX
| Attribute | Value |
|---|---|
| Compatible Models | Tektronix TDS1000, TDS2000, TDS1000B, TDS2000B, TDS1000C-EDU, TDS2000C Series Oscilloscopes |
| Bundle Contents | Communications Module (TDS2CM), Video Trigger Application Module (TDS2VID), and Advanced Analysis Application Module (TDS2AA) |
| Communication Interfaces | RS-232, GPIB, and Centronics Printer Port (via TDS2CM module) |
| Video Trigger Standards Supported | NTSC, PAL, SECAM (via TDS2VID module) |
| Advanced Analysis Features | FFT analysis, Limit testing, and Extended math functions (via TDS2AA module) |
| Installation Type | Plug-in module slot on compatible TDS series oscilloscopes |
| Number of Modules Included | 3 application modules bundled in one package |
| Software/Firmware Requirement | Compatible oscilloscope firmware must support application module functionality |
| Package Type | Module Bundle / Accessory Kit |
| Warranty | 1 Year Tektronix Limited Warranty |
| Model | TDS2CMAX |
|---|

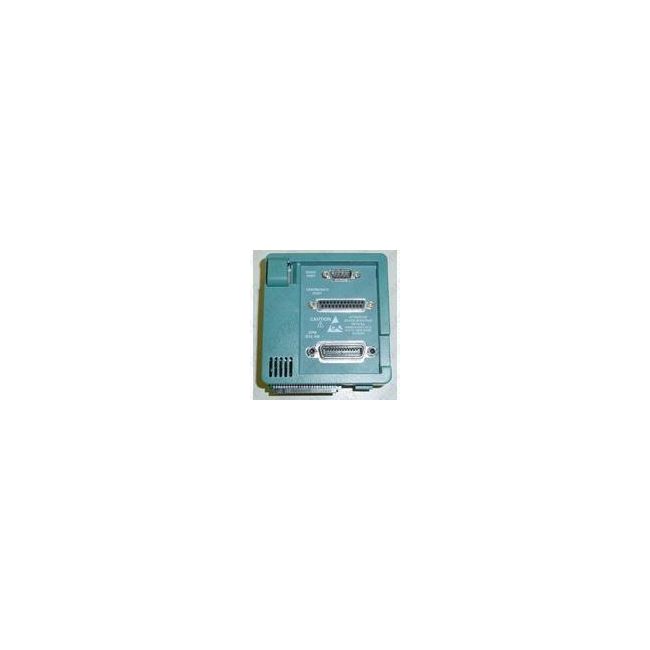

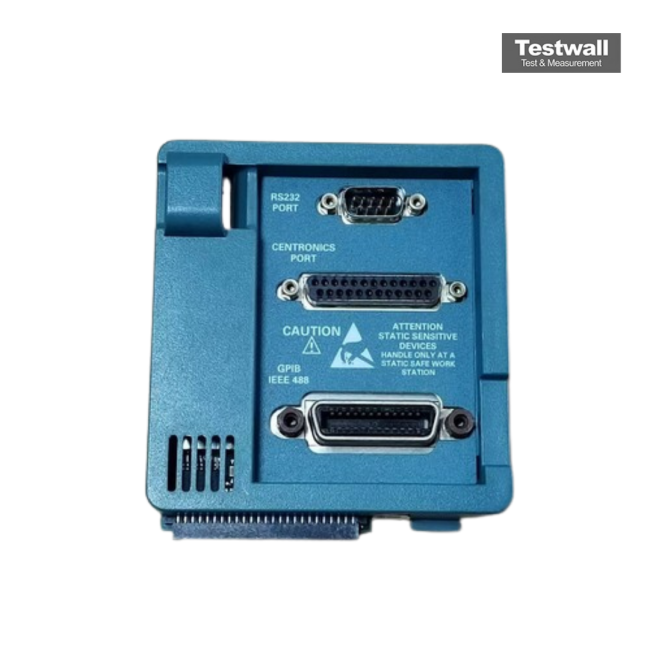

The Tektronix TDS2CMAX module enhances oscilloscope communication through RS-232, GPIB, and Centronics-type parallel ports, enabling full programmability and automated control. It includes OpenChoice™ PC software, a 9-pin RS-232 cable, and supports baud rates up to 19,200. Printer compatibility includes Bubble Jet, Deskjet, LaserJet, and various Epson models, supporting graphics formats such as TIFF, BMP, EPS, PCX, and RLE.
This module allows remote display, measurement automation, and output archiving with versatile layout options—landscape or portrait. Firmware version 2.12/4.12 or higher is required for advanced printer support.
Testwall can supply the used Tektronix TDS2CMAX, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS2CMAX.
