Tektronix P5100A
High Voltage Probe, 500 MHz 100X
500 MHz Bandwidth
100X Attenuation Ratio
2500 V CAT II (DC + Peak AC) Maximum Input Voltage
700 ps Rise Time
40 MΩ (with 1 MΩ oscilloscope input) Input Resistance
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Attenuation Ratio | 100X |
| Maximum Input Voltage | 2500 V CAT II (DC + Peak AC) |
| Rise Time | 700 ps |
| Input Resistance | 40 MΩ (with 1 MΩ oscilloscope input) |
| Input Capacitance | 2.5 pF (with 20 pF oscilloscope input) |
| Cable Length | 1.2 m (4 ft) |
| Compensation Range | 10 pF to 35 pF |
| Operating Temperature | 0°C to +50°C |
| Connector Type | BNC |
| Model | P5100A |
|---|

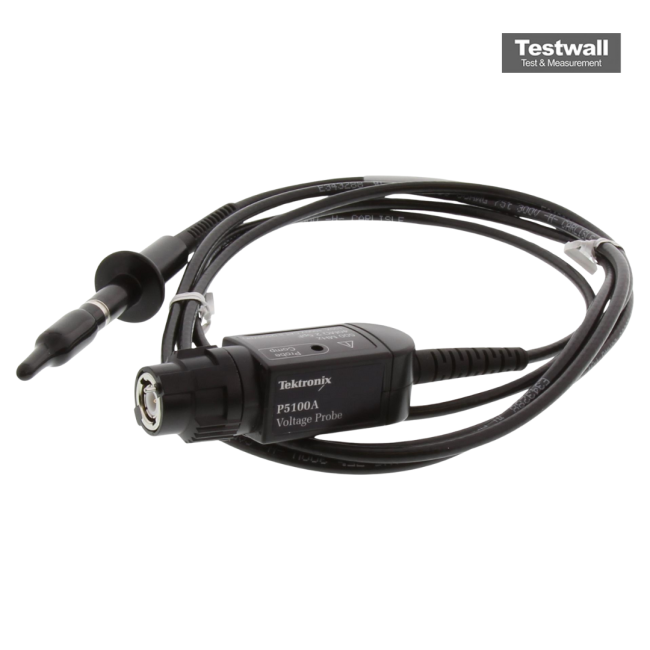

Tektronix P5100AThe Tektronix P5100A, when coupled with the TPS2000B Series digital storage Oscilloscopes, deliver both the isolation for the measurement from earth ground and full isolation between the channels. The P5120 is the recommended probe for measuring ripple on high-voltage DC supplies. The Tektronix P5100A probe should not be used for AC-coupled measurements on signals with greater than 300V DC offset.Specifications of the Tektronix P5100A High Voltage Probe include: DC to 500MHz 2500V Peak, 1000V CATII 100X with Readout Coding UL3111-1, EN61010-1, IEC61010-2-031, CSA1010.1, CSA1010.2.031 7 to 30 pF Compensation Range
