Tektronix P5102
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Attenuation | 10X / 100X (switchable) |
| Input Impedance (10X) | 10 MΩ in parallel with 13 pF |
| Input Impedance (100X) | 100 MΩ in parallel with 2.5 pF |
| System Rise Time | 3.5 ns |
| Maximum Input Voltage (10X) | 600 V CAT II (DC + Peak AC) |
| Maximum Input Voltage (100X) | 1000 V CAT II (DC + Peak AC) |
| Cable Length | 1.2 m (4 ft) |
| Compensation Range | 10 pF to 35 pF |
| Compatible Oscilloscope Input Impedance | 1 MΩ |
| Model | P5102 |
|---|
The Tektronix P5102 is a high-voltage passive probe designed for use with THS700 Series oscilloscopes. It features a 10X attenuation ratio, supports measurements up to 1000 V RMS, and operates at bandwidths up to 100 MHz. With a floating common, 3.5 ns rise time, and a 2-meter nominal length, it ensures high precision in high-voltage applications.

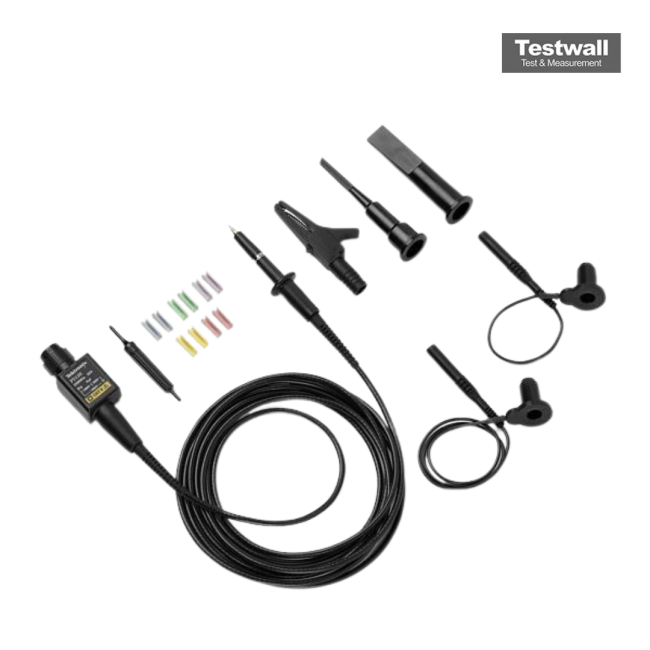

This probe is ideal for power supply and high-voltage device diagnostics, with a range of accessories including tip extenders and color markers for ease of use. Operating temperature spans -15 to +55 °C.
Testwall can supply the used Tektronix P5102, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P5102.
