Tektronix
Tektronix P5910
Logic Analyzer Probe
4 GHz Bandwidth
50 Ω Input Impedance
10X / 100X Attenuation Ratio
40 V RMS (CAT I) Maximum Input Voltage
87.5 ps Rise Time
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Input Impedance | 50 Ω |
| Attenuation Ratio | 10X / 100X |
| Maximum Input Voltage | 40 V RMS (CAT I) |
| Rise Time | 87.5 ps |
| Dynamic Range | ±4 V (10X), ±40 V (100X) |
| Probe Cable Length | 1.2 m (4 ft) |
| Compatible Oscilloscopes | Tektronix TDS/CSA/DSA Series with TekConnect Interface |
| Connector Type | TekConnect |
| Operating Temperature Range | 0°C to +50°C (32°F to 122°F) |
Tektronix P5910 Options:
- P5910 - Opt. L0 - English manual
- P5910 - Opt. L99 - No manual
- P5910 - Opt. C3 - Calibration Service 3 Years
- P5910 - Opt. C5 - Calibration Service 5 Years
- P5910 - Opt. R3 - Repair Service 3 Years (including warranty)
- P5910 - Opt. R5 - Repair Service 5 Years (including warranty)
| Model | P5910 |
|---|

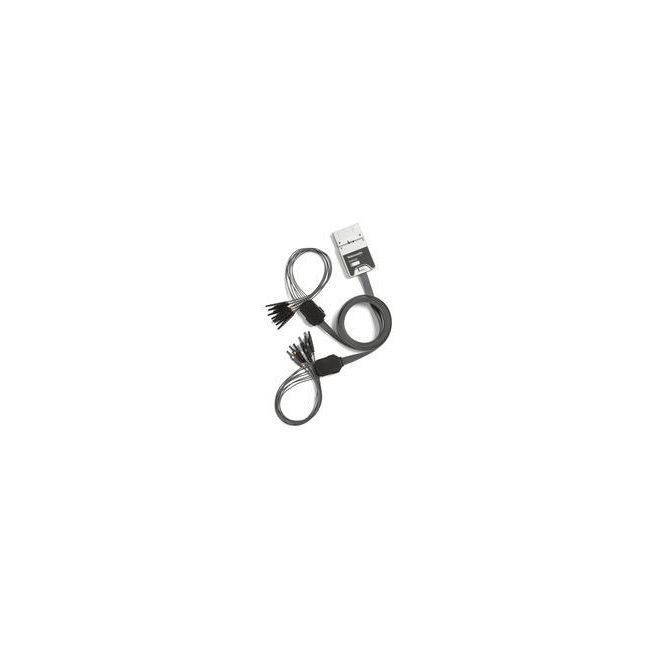

The Tektronix P5910 is a 17-channel general-purpose logic analyzer probe designed for TLA6400 Series, with 20 kΩ input resistance, 7.5 Vp-p dynamic range, and ultra-low capacitive loading to protect signal integrity during digital validation and debug.
Compatible with a wide array of connectors including D-Max®, Mictor, square pins, and flying leads. Ideal for real-time embedded system analysis.
Testwall can supply the used Tektronix P5910, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P5910.
