Tektronix
Tektronix P6106A
250 MHz Bandwidth
10X Attenuation
10 MΩ Input Resistance
12.5 pF Input Capacitance
600 V CAT II (DC + Peak AC) Maximum Input Voltage
| Attribute | Value |
|---|---|
| Bandwidth | 250 MHz |
| Attenuation | 10X |
| Input Resistance | 10 MΩ |
| Input Capacitance | 12.5 pF |
| Maximum Input Voltage | 600 V CAT II (DC + Peak AC) |
| Rise Time | 1.4 ns |
| Cable Length | 1.2 m (4 ft) |
| Compensation Range | 15 pF to 47 pF |
| Compatible Oscilloscopes | Tektronix oscilloscopes with BNC input connectors |
| Connector Type | BNC |
| Model | P6106A |
|---|

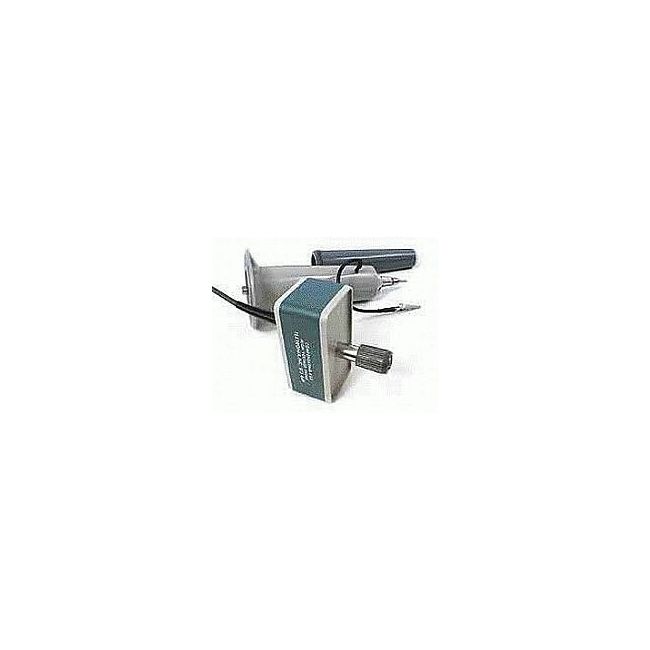

The Tektronix P6106A is a modular oscilloscope probe designed for long-term usability with older “Classic” Tektronix scopes, featuring a rugged build and a 250 MHz bandwidth
Its modular design includes a detachable probe head, cable, and connector—allowing for easy replacement, fast repairs, and minimal downtime
Testwall can supply the used Tektronix P6106A, fully tested
With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality
Please contact us directly if you need calibration or repair of the Tektronix P6106A.
