Tektronix TCP303
| Attribute | Value |
|---|---|
| Current Measurement Range | 15 A / 150 A (switchable) |
| Bandwidth | DC to 15 MHz |
| Maximum Peak Current | 500 A (pulse) |
| Current Probe Type | AC/DC Current Probe |
| Output Sensitivity | 10 mV/A (150 A range), 100 mV/A (15 A range) |
| Maximum Conductor Diameter | 14 mm |
| Rise Time | 23 ns |
| Compatible Amplifier | TCPA300 Amplifier Required |
| DC Accuracy | ±2% typical |
| Operating Temperature Range | 0°C to +50°C |
Tektronix TCP303 Options:
- TCP303 - C3 - Calibration Service 3 Years
- TCP303 - C5 - Calibration Service 5 Years
- TCP303 - D1 - Calibration Data Report
- TCP303 - D3 - Calibration Data Report 3 Years (with Option C3)
- TCP303 - D5 - Calibration Data Report 5 Years (with Option C5)
- TCP303 - R3 - Repair Service 3 Years
- TCP303 - R5 - Repair Service 5 Years
| Model | TCP303 |
|---|

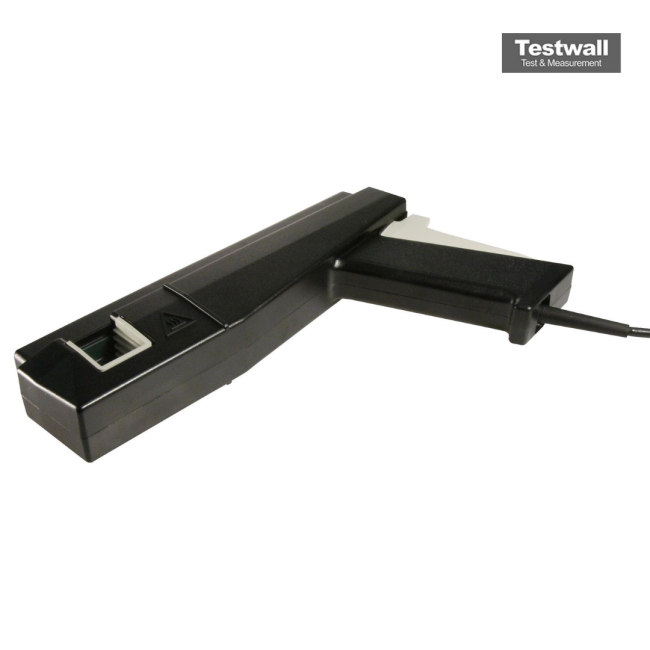

The Tektronix TCP303 AC/DC Current Probe offers advanced measurement capabilities with split-core design combining transformer and Hall effect technology, enabling accurate current measurements from 1 mA to 150 A DC, with up to 15 MHz bandwidth when paired with the TCPA300 amplifier.
Ideal for power electronics and telecom applications, it integrates easily with Tektronix TDS Oscilloscopes, supporting automatic scaling, low insertion impedance, and broad application compatibility including SCRs, IGBTs, and MOSFETs.
Testwall can supply the used Tektronix TCP303, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TCP303.
