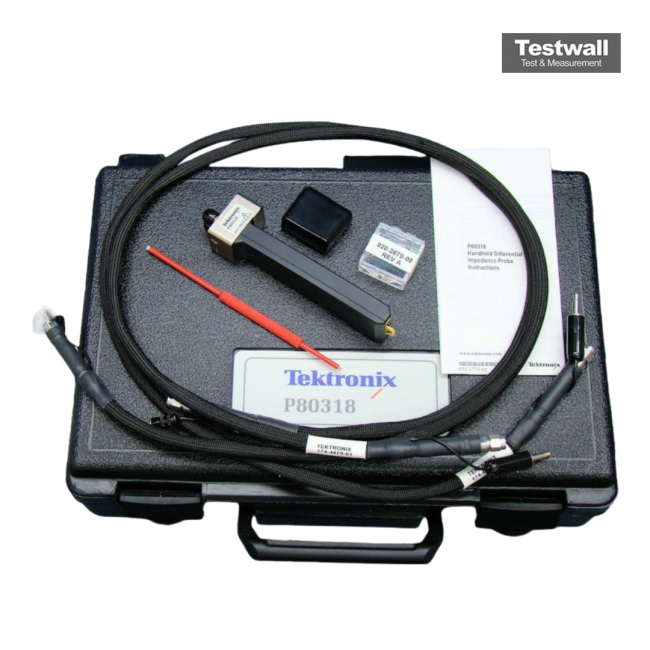

Tektronix P80318
| Attribute | Value |
|---|---|
| Bandwidth | 3 GHz |
| Rise Time | 117 ps |
| Input Impedance | 50 Ω |
| Dynamic Range | ±800 mV |
| Attenuation Ratio | 10X |
| Probe Type | Single-Ended Active Probe |
| Compatible Oscilloscopes | Tektronix MSO/DPO70000 Series, DSA70000 Series, DPO7000 Series |
| Cable Length | 1.2 m (approximately 4 ft) |
| Operating Temperature | 0°C to +50°C |
| Connector Interface | TekVPI Probe Interface |
Tektronix P80318 Options:
- P80318 - P80318X - 18 GHz 100Ω Differential TDR Hand Probe for Manufacturing (includes two probe bodies, one set of two precision SMA cables, soft storage case, user manual, and three replaceable ground shorting straps)
- P80318 - P8018 - 18 GHz Single-ended 50Ω TDR Probe. To compliment TDR probing for single-ended applications
- P80318 - 80A02 - ESD/EOS TDR Protection Module
- P80318 - 174-3896-xx - External Probe Power Cable. To reduce module acquisition slot consumption the 80A02 modules can run off this probe power cable
- P80318 - 020-2670-xx - Ground Spring Kit. Set of two ground springs with a spare set screw for P80318 probe
| Model | P80318 |
|---|
The Tektronix P80318 is a single-ended passive TDR probe with >20 GHz bandwidth and a precision SMA cable designed for high-performance impedance testing and high-speed signal analysis. It features 50 Ω input impedance, a probe tip pressure actuator, and compatibility with the 80A02 EOS/ESD Protection Module for safeguarding Tektronix sampling modules.
Engineered for undisturbed signal fidelity, the P80318 supports electrical sampling TDR applications, with a stable 50 Ω reference and enhanced performance in electrostatic-sensitive environments.
Testwall can supply the used Tektronix P80318, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P80318.
