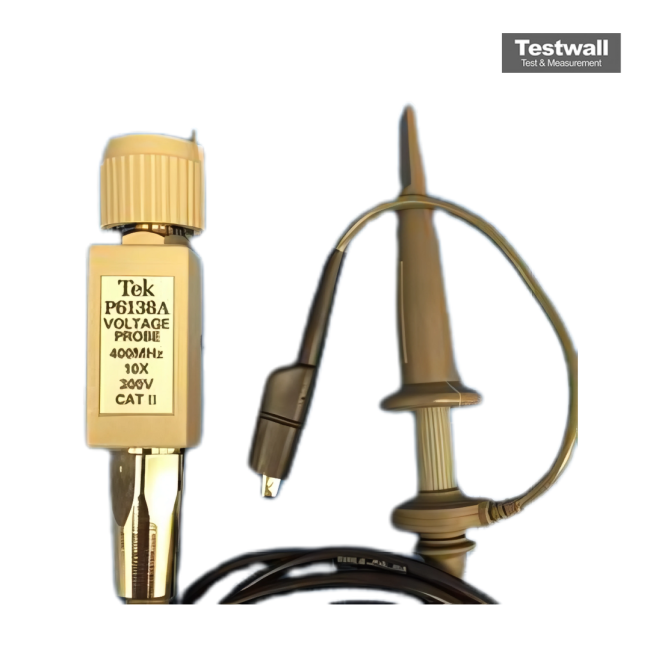

Tektronix P6138A
| Attribute | Value |
|---|---|
| Bandwidth | 400 MHz |
| Attenuation | 10X |
| Input Resistance | 10 MΩ |
| Input Capacitance | 13.5 pF |
| Cable Length | 1.3 m (4.3 ft) |
| Maximum Input Voltage | 300 V RMS CAT II |
| Rise Time | 875 ps |
| Compensation Range | 15 pF to 47 pF |
| Connector Type | BNC |
| Compatible Oscilloscope Input | 1 MΩ oscilloscope input |
| Model | P6138A |
|---|
The Tektronix P6138A features a compact probe head compatible with various miniature and compact tip accessories via the 013-0202-03 adapter. It supports high accuracy in signal measurements for TDS400 Series oscilloscopes, offering small geometry tips for better circuit access, a flexible lightweight cable for ease of use, and HYBRID/SMT circuitry for enhanced reliability.
Ideal for high and low frequency relative measurements in design, service, and manufacturing, it offers modularity for reduced ownership costs and readout for 10X attenuation to avoid errors.
Testwall can supply the used Tektronix P6138A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6138A.
