Tektronix THDP0100
High-voltage Differential Probe
100 MHz Bandwidth
±750 V (DC + Peak AC) Maximum Differential Voltage
±1500 V (DC + Peak AC) Maximum Common Mode Voltage
100X / 1000X Attenuation Ratio
4 MΩ, 7 pF (each input to ground) Input Impedance
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Maximum Differential Voltage | ±750 V (DC + Peak AC) |
| Maximum Common Mode Voltage | ±1500 V (DC + Peak AC) |
| Attenuation Ratio | 100X / 1000X |
| Input Impedance | 4 MΩ, 7 pF (each input to ground) |
| CMRR (Common Mode Rejection Ratio) | ≥ 80 dB at 60 Hz |
| Rise Time | 3.5 ns |
| Output Connector | TekProbe BNC Interface |
| Operating Temperature Range | 0°C to +50°C |
| Safety Rating | CAT III 1000 V, CAT IV 600 V |
Tektronix THDP0100 Options:
- THDP0100 - C3 - Calibration Service 3 Years
- THDP0100 - C5 - Calibration Service 5 Years
- THDP0100 - D1 - Calibration Data Report
- THDP0100 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- THDP0100 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- THDP0100 - R3 - Repair Service 3 Years (including warranty)
- THDP0100 - R5 - Repair Service 5 Years (including warranty)
- THDP0100 - SILV200 - Standard warranty extended to 5 years
| Model | THDP0100 |
|---|

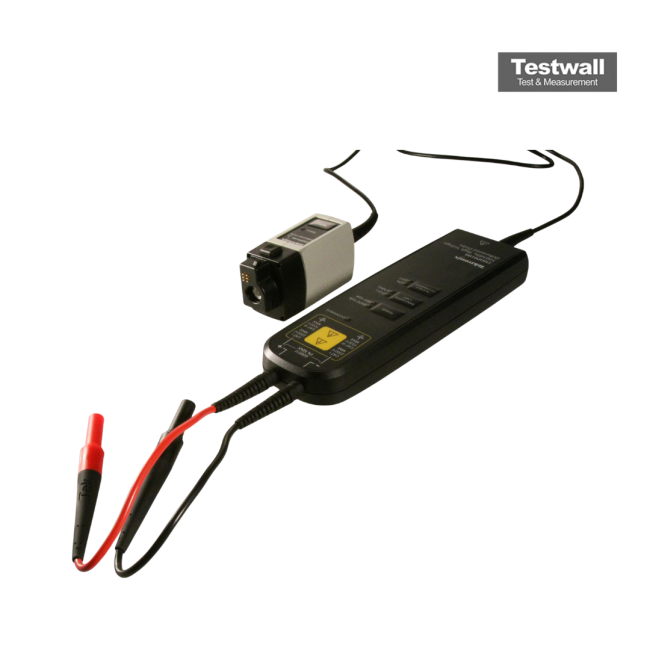

The Tektronix THDP0100 High Voltage Differential Probe delivers ±6000 V differential range with 100 MHz bandwidth and 2500 V/ns slew rate. It features 100X/1000X switchable attenuation and bandwidth limit, with CAT I 2300 V and CAT III 1000 V safety ratings.
Equipped with multiple probe tips and clips, the THDP0100 provides visual and audible overrange indicators, ideal for safe, high-voltage measurements without a TPA-BNC adapter.
Testwall can supply the used Tektronix THDP0100, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix THDP0100.
