Tektronix P6139
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Attenuation Ratio | 10X |
| Input Resistance | 10 MΩ |
| Input Capacitance | 8 pF (probe tip); 47 pF (with cable) |
| Maximum Input Voltage | 300 V RMS CAT II |
| Rise Time | 700 ps |
| Cable Length | 1.3 m (4.3 ft) |
| Compensation Range | 15 pF to 47 pF |
| Connector Type | BNC |
| Operating Temperature | 0°C to +50°C |
| Model | P6139 |
|---|

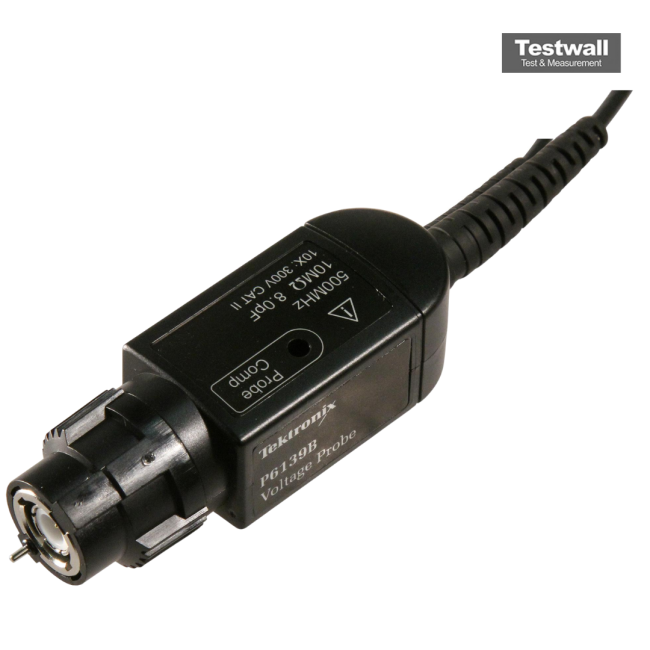

The Tektronix P6139 is a high-bandwidth 10× passive probe engineered for precision signal capture within compact electronic assemblies. Offering a 500 MHz bandwidth and 10 MΩ input impedance with ~8 pF capacitance, it ensures minimal loading on circuits and high-fidelity measurement.
It supports a 300 V CAT II rating for enhanced safety and features a sharp, compact tip with interchangeable cartridges. The integrated TekProbe interface allows seamless auto-scaling with compatible Tektronix oscilloscopes.
Testwall can supply the used Tektronix P6139, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6139.
